Project #5 - 10 Ton Unit–Supplemental Cooling
Project #5 - 10 Ton Unit–Supplemental Cooling
Scope of Work:

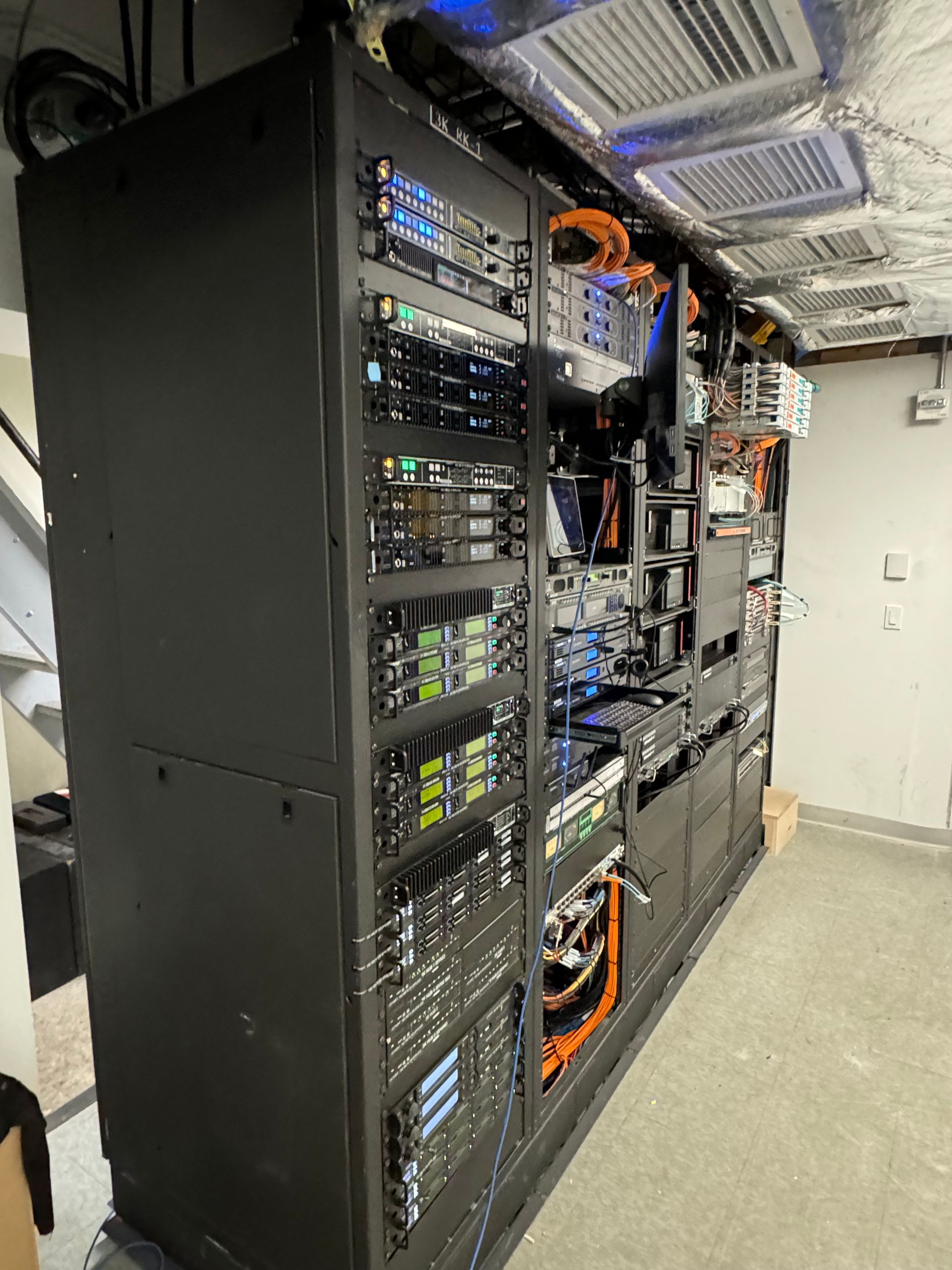

- Disassemble and remove existing 10 Ton Main for Rack Room Chilled Water Air handling unit and properly dispose of.

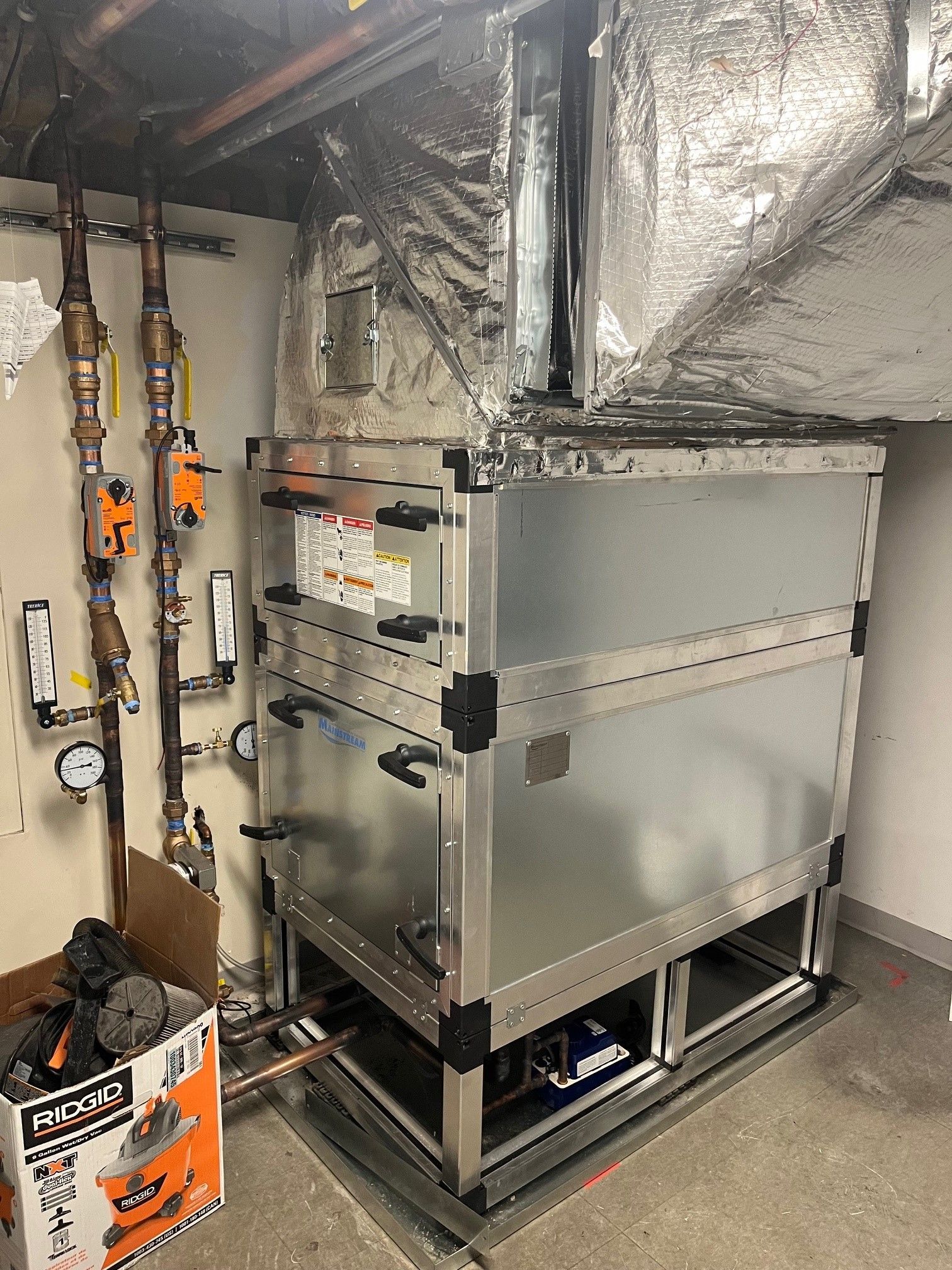

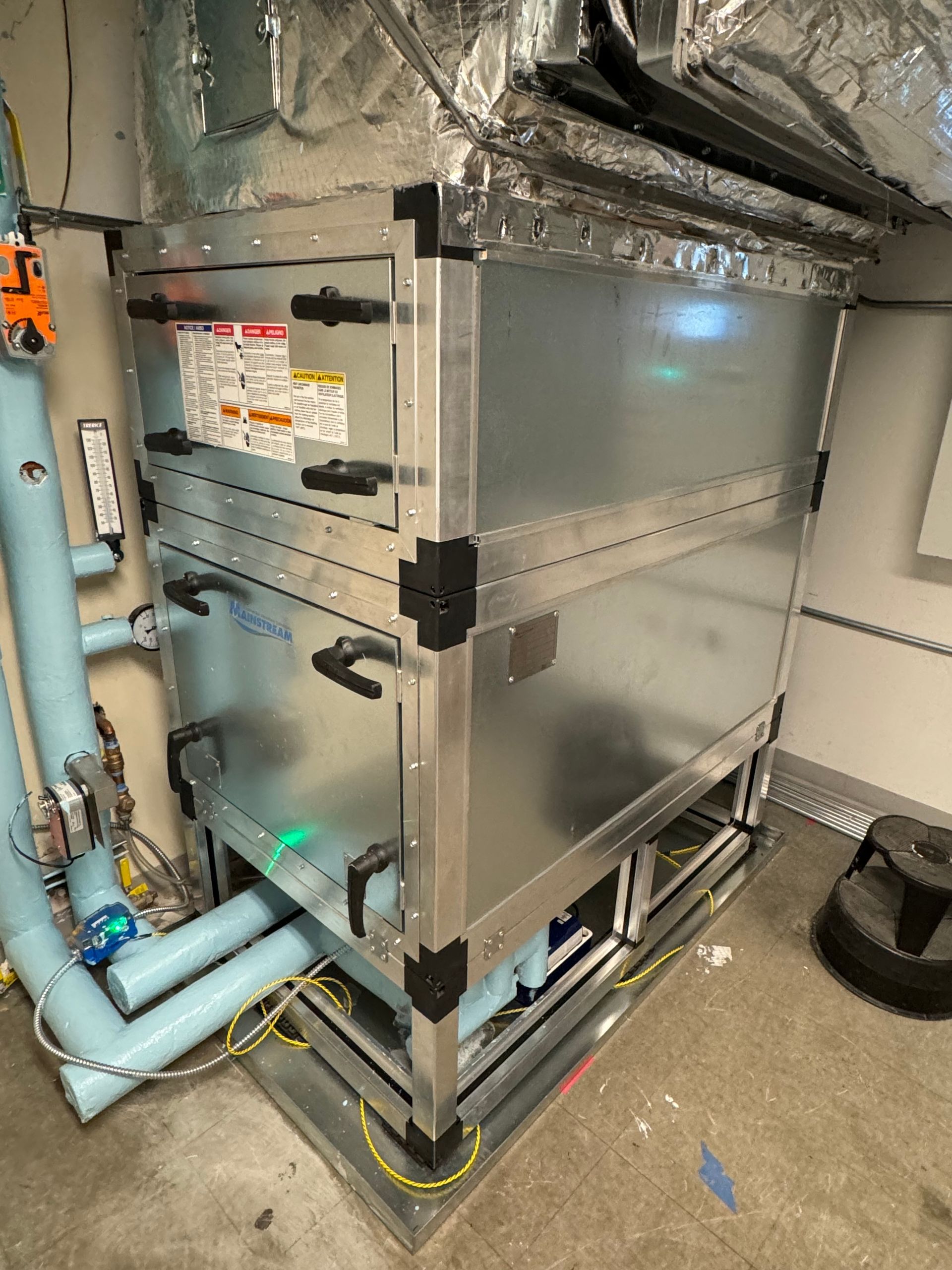

- Furnish and Install (1) Custom Indoor MLRa Supplemental 10 Ton AHU to include the following:
- 2” Double Wall Construction
- Custom stand/base to allow bottom intake
- Filters (2” MERV8)
- “A” style chilled water coil
- Fan & a humidifier shipped loose to be installed in duct
- The approx. dimensions are: 64” High (12” stand) x 62” Wide x 36” Deep
Includes Packaged Controls:

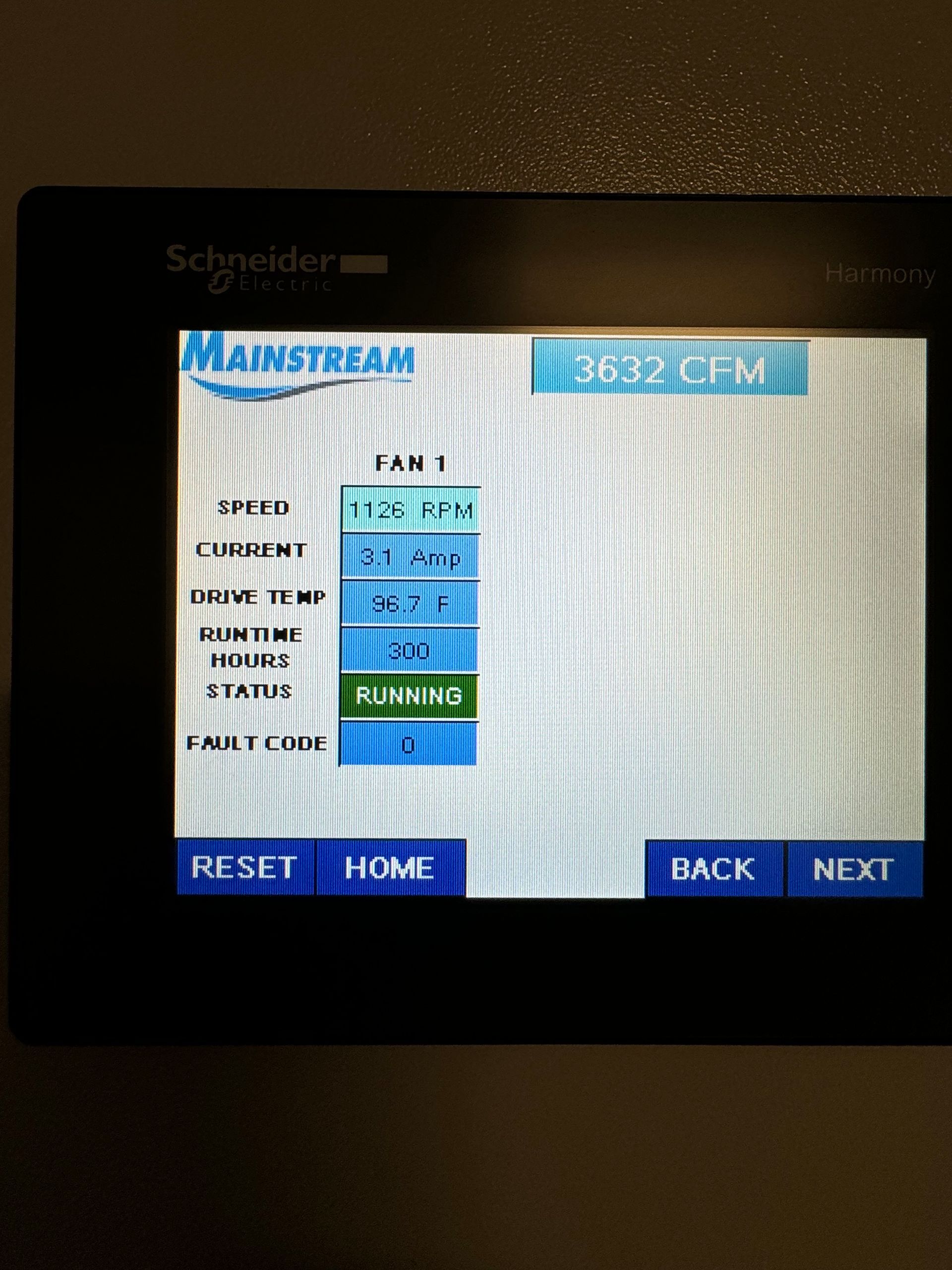

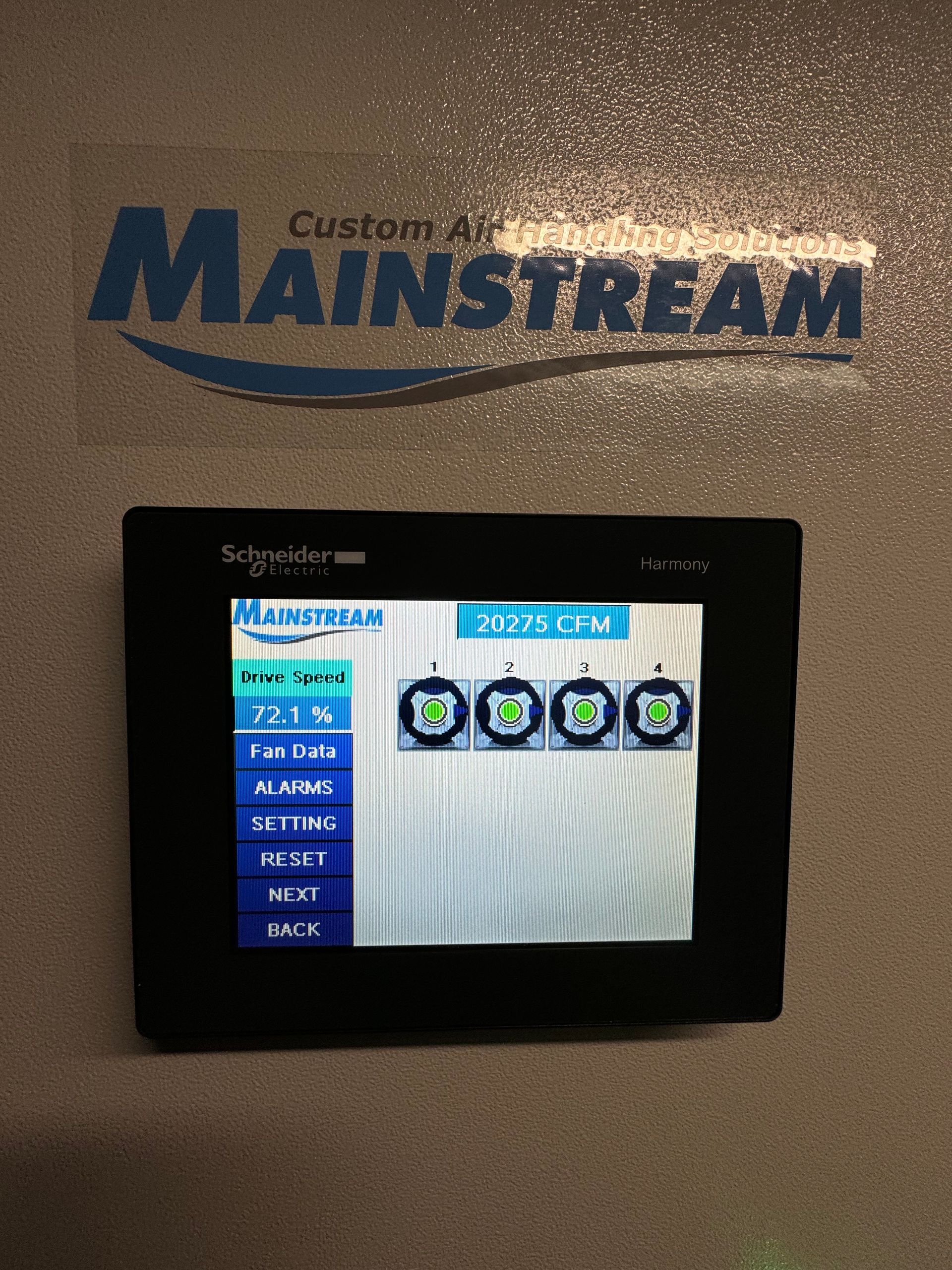

- Touchscreen Sensor

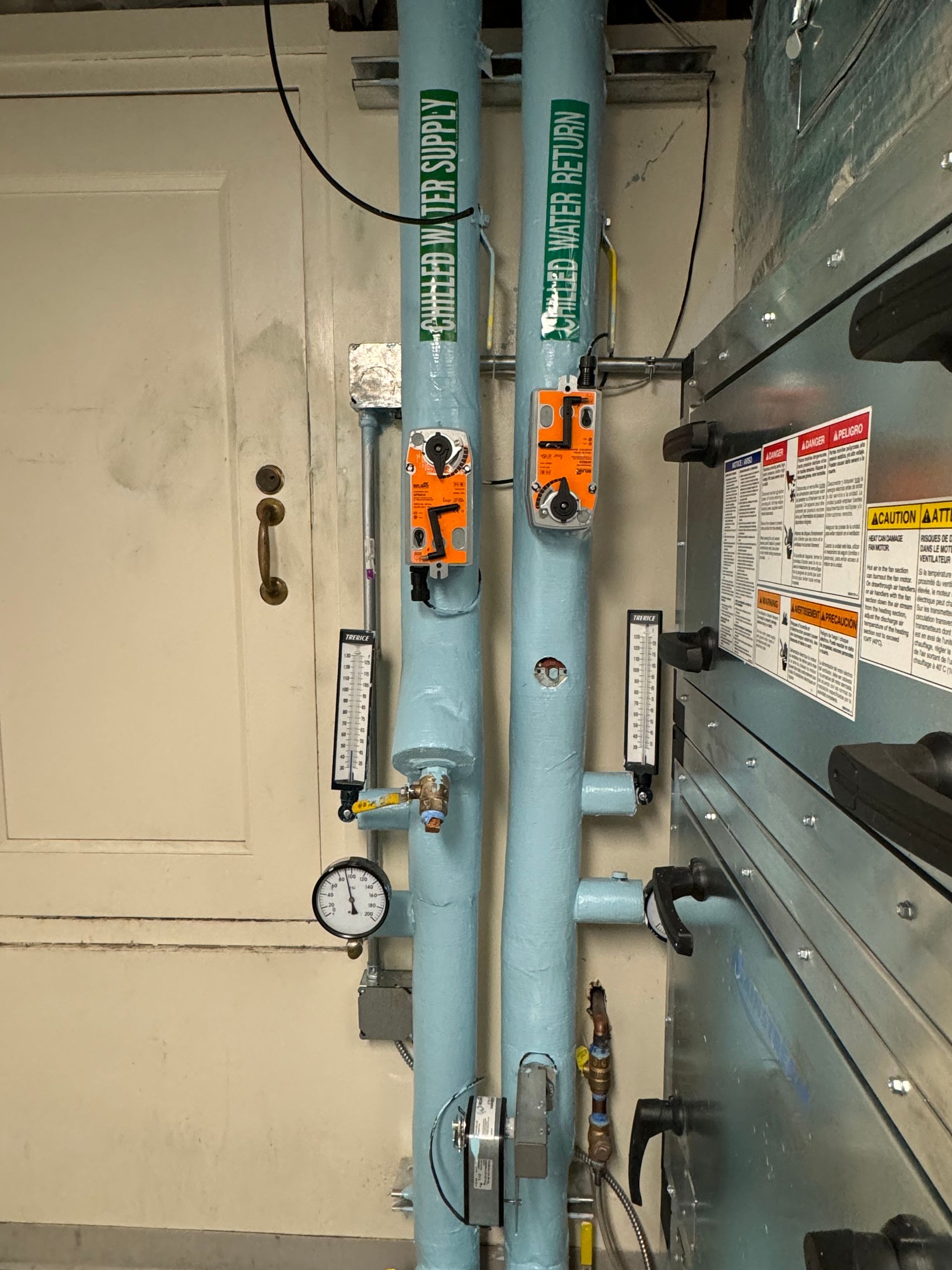

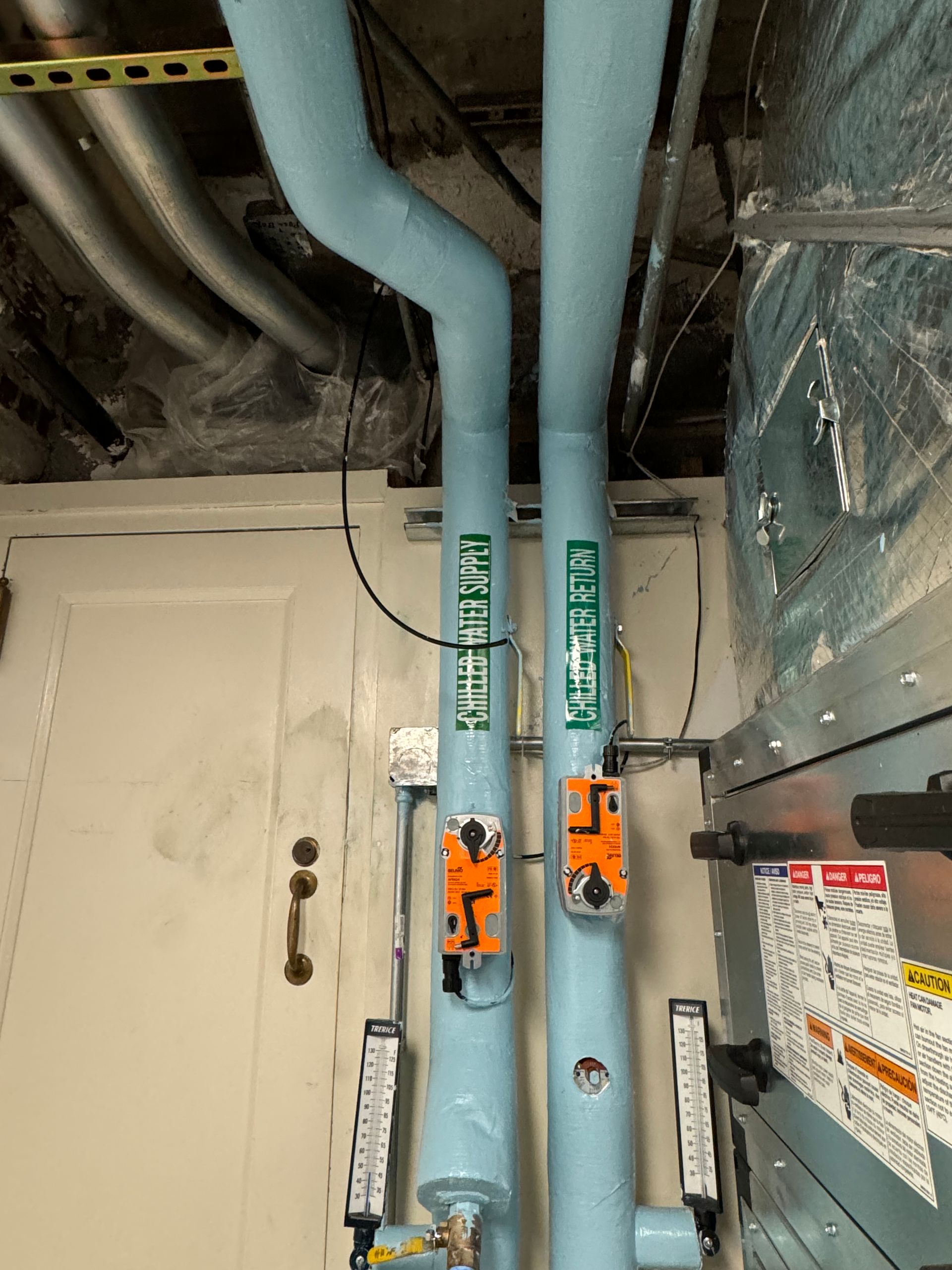

- Chilled Water Valve (24V)
- Programming - Reconnect existing piping as required. Re-Insulate existing piping if required.

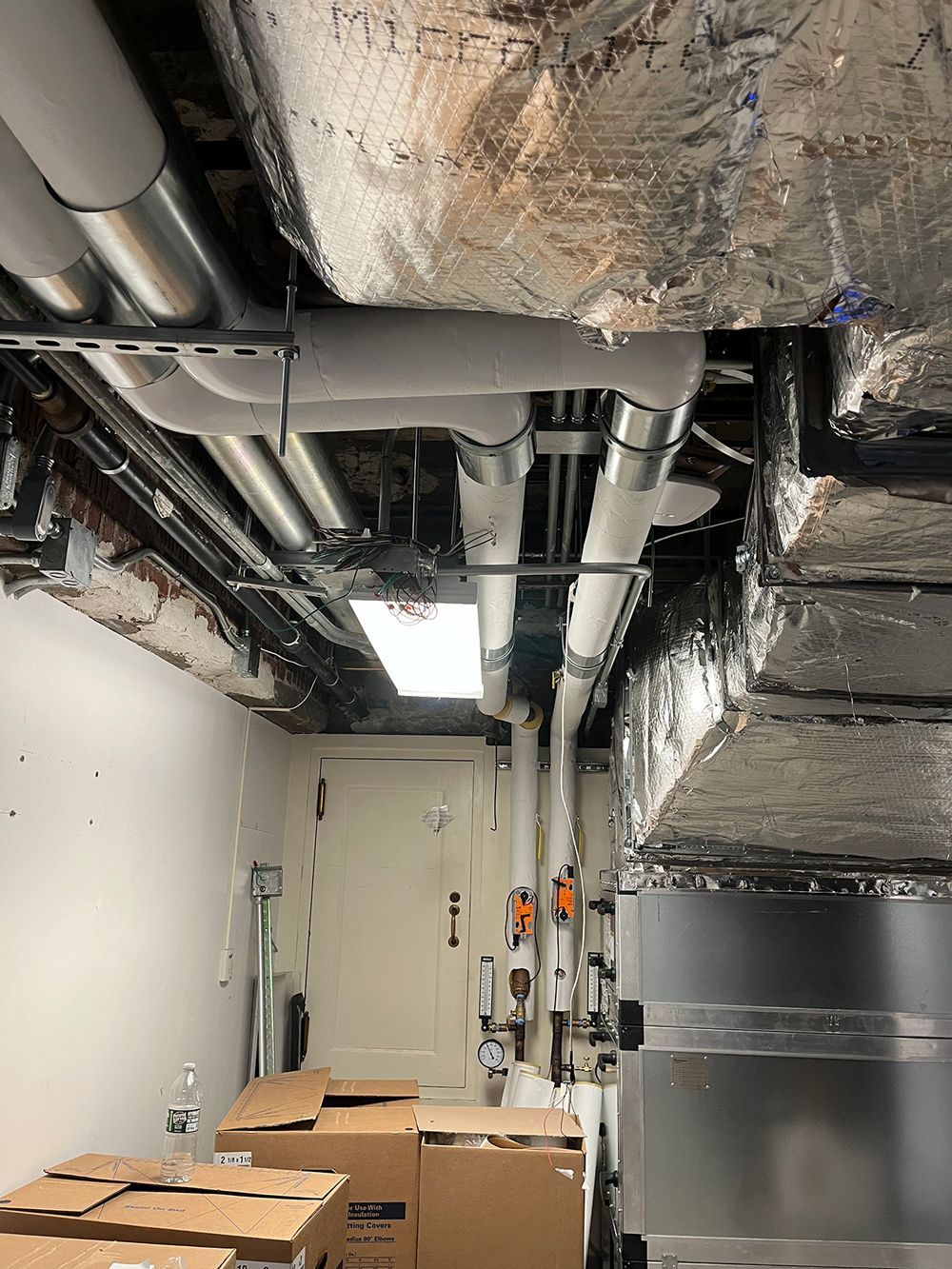

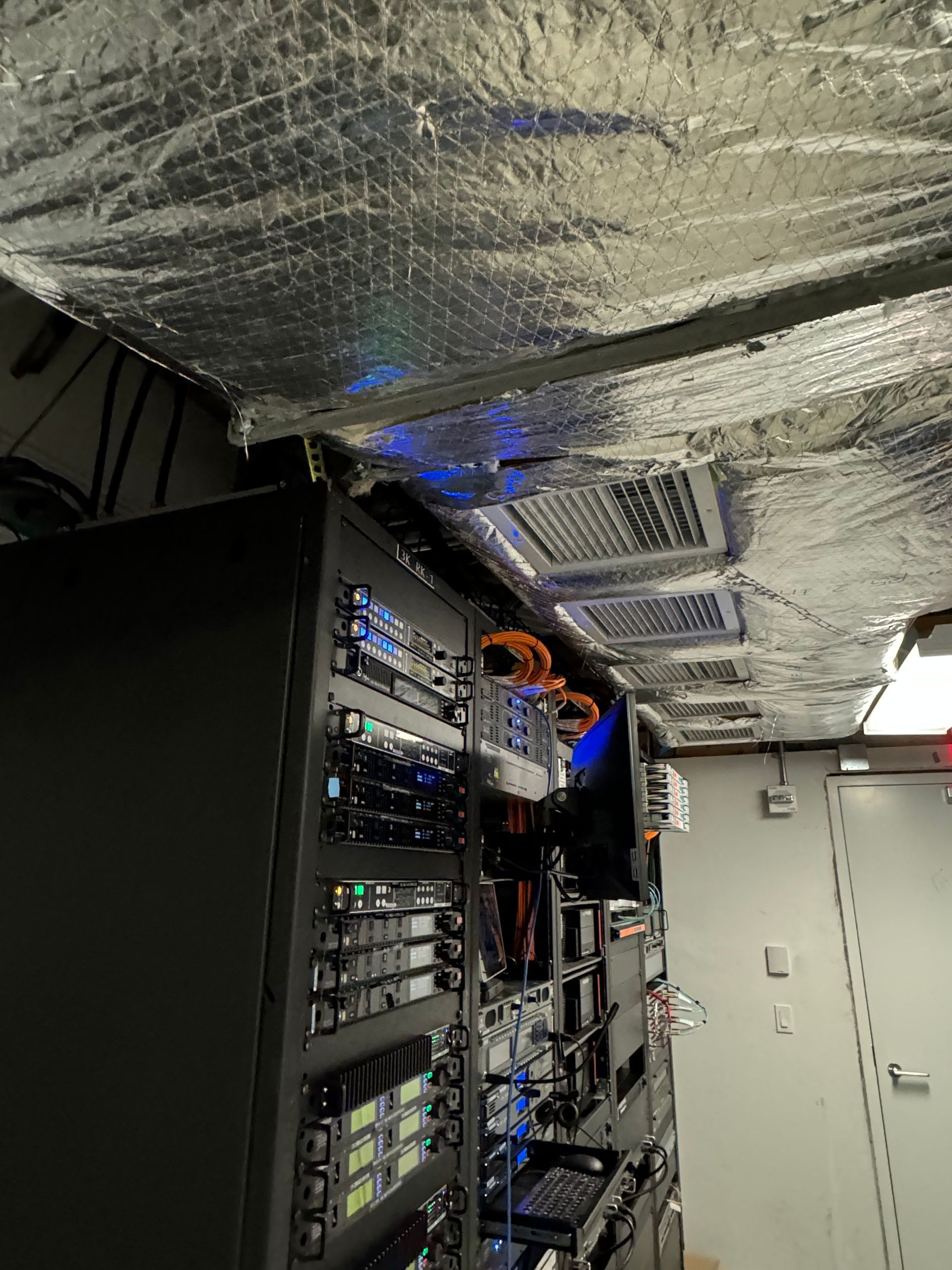

- Furnish and Install Ductwork to connect to existing.

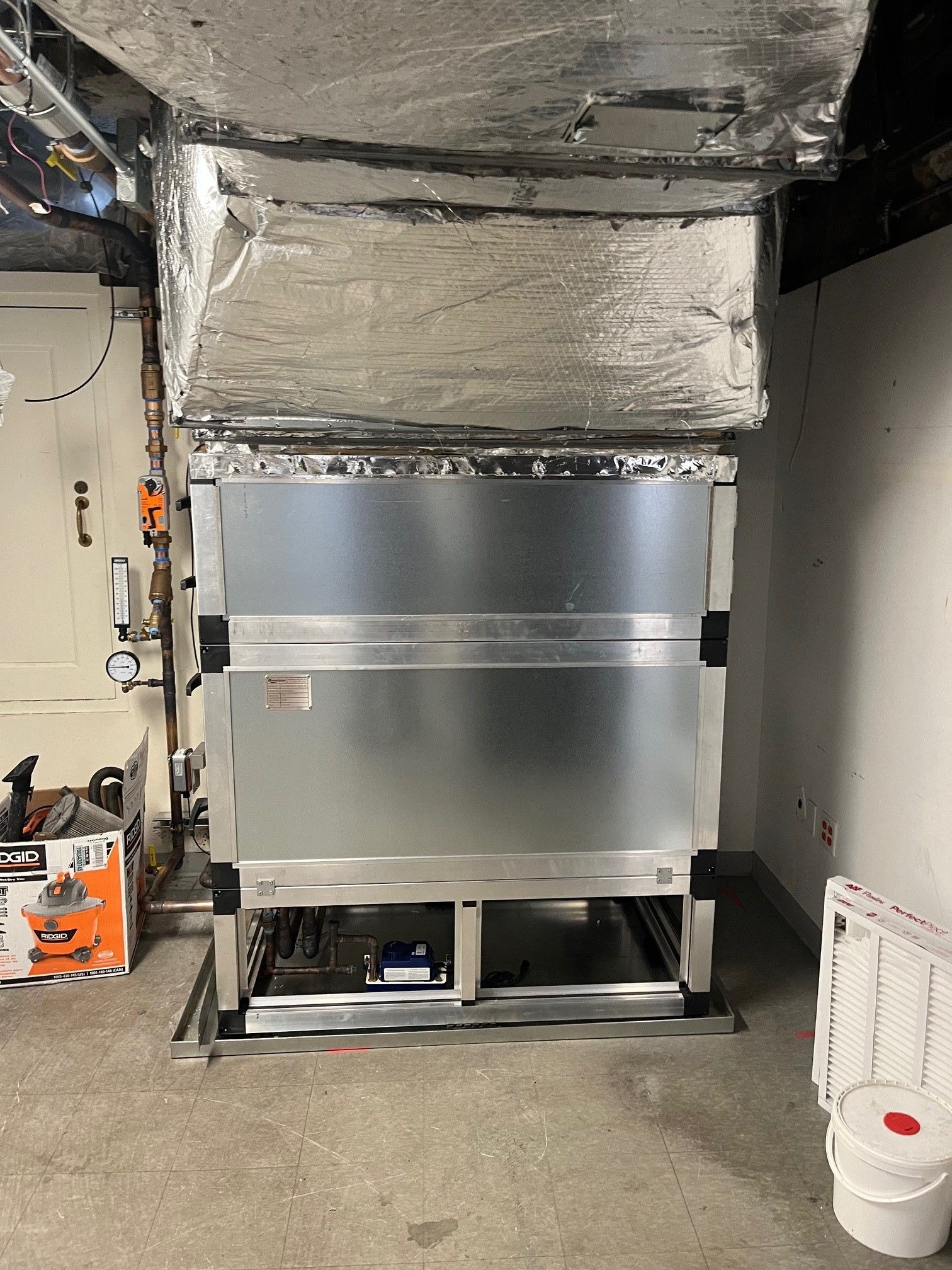

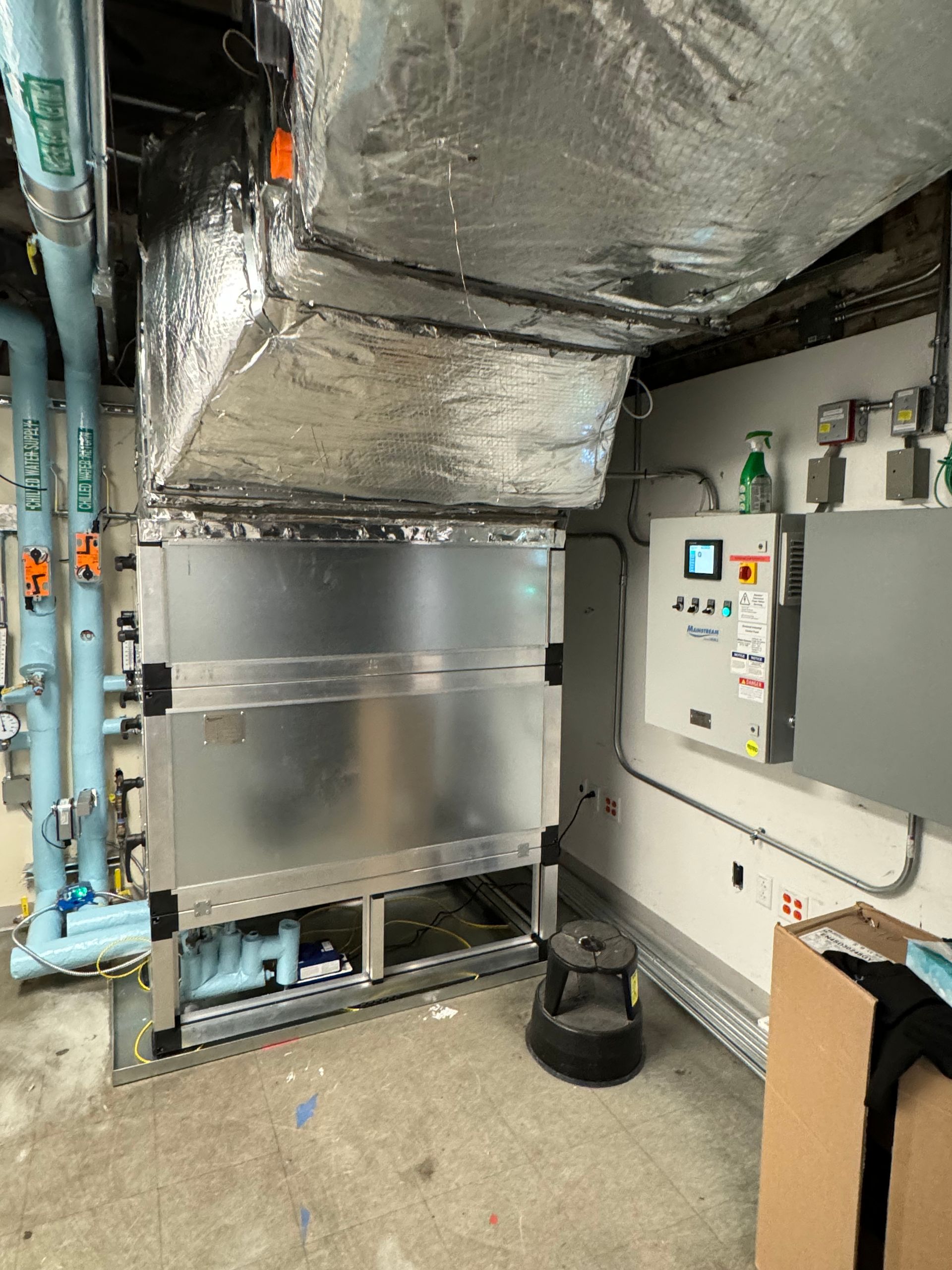

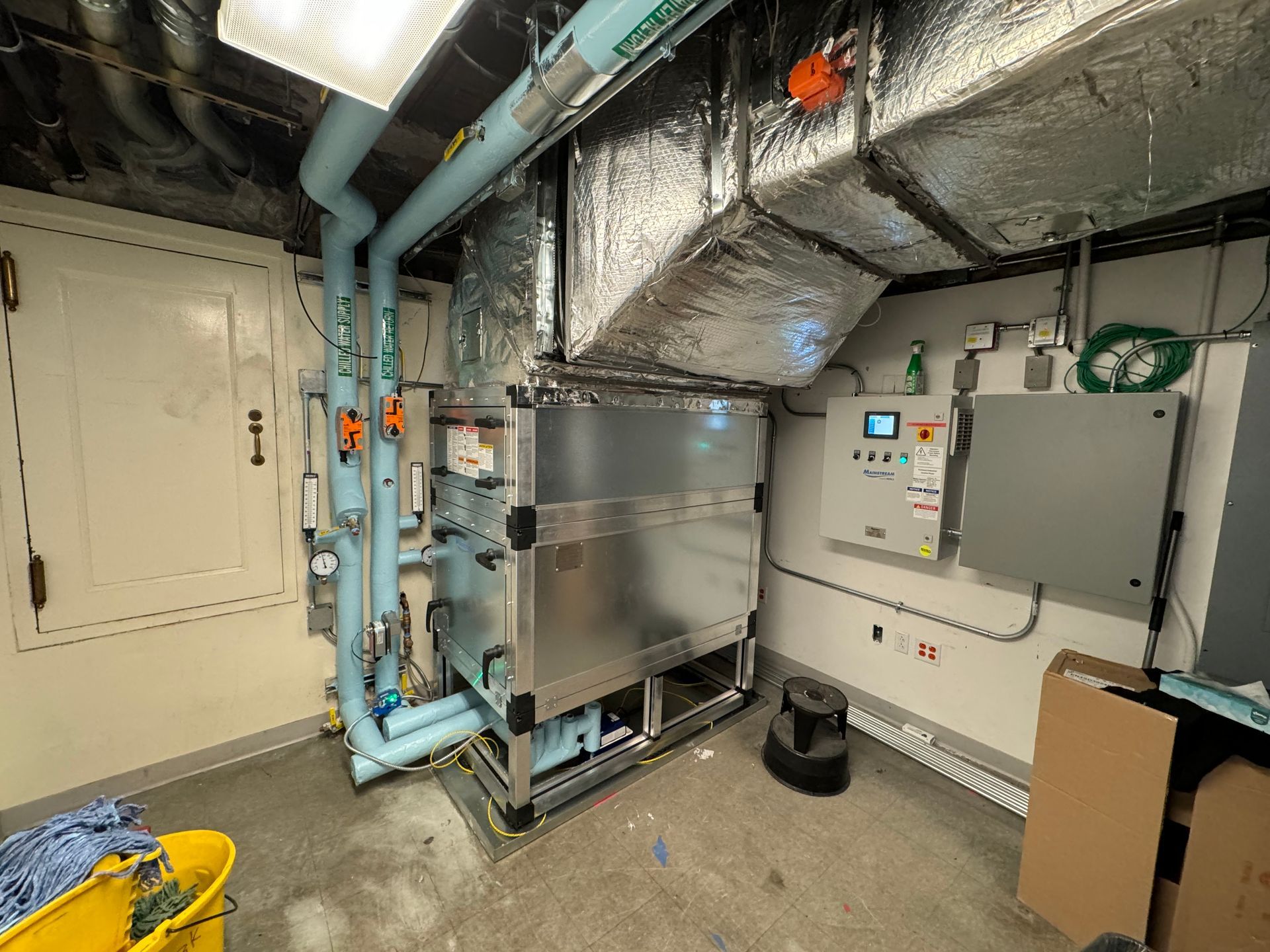

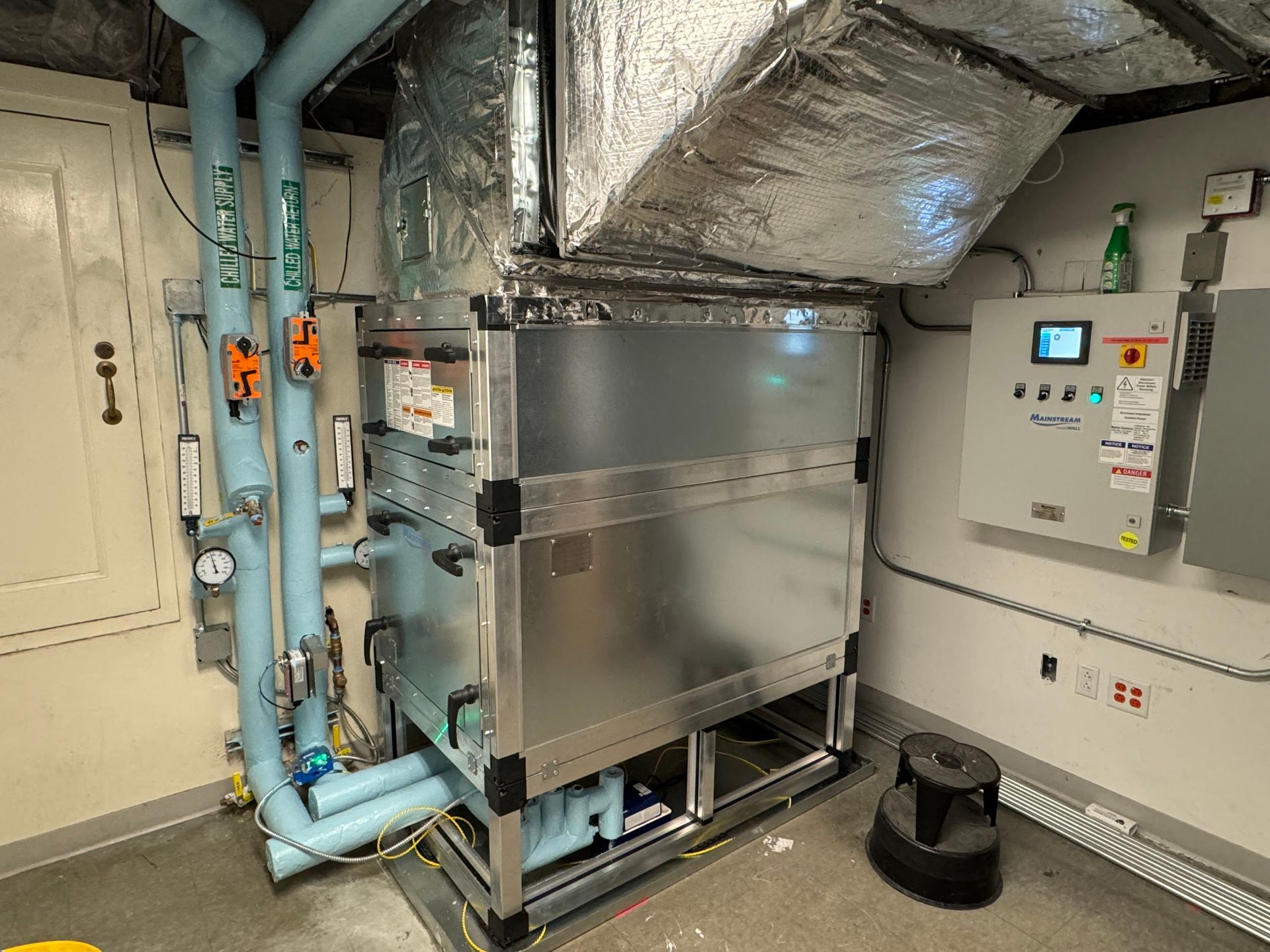

Completed Project Photos
Design:

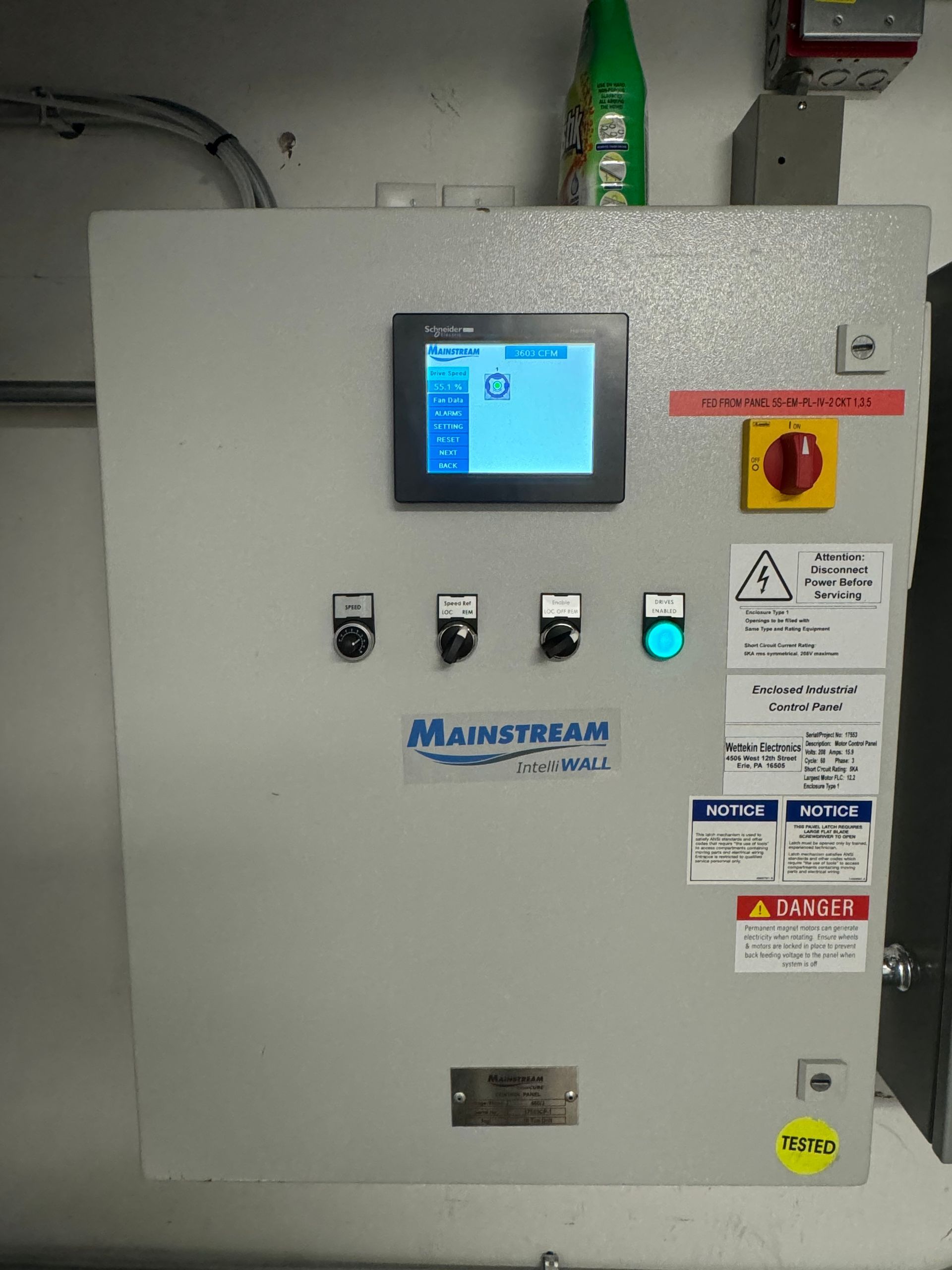

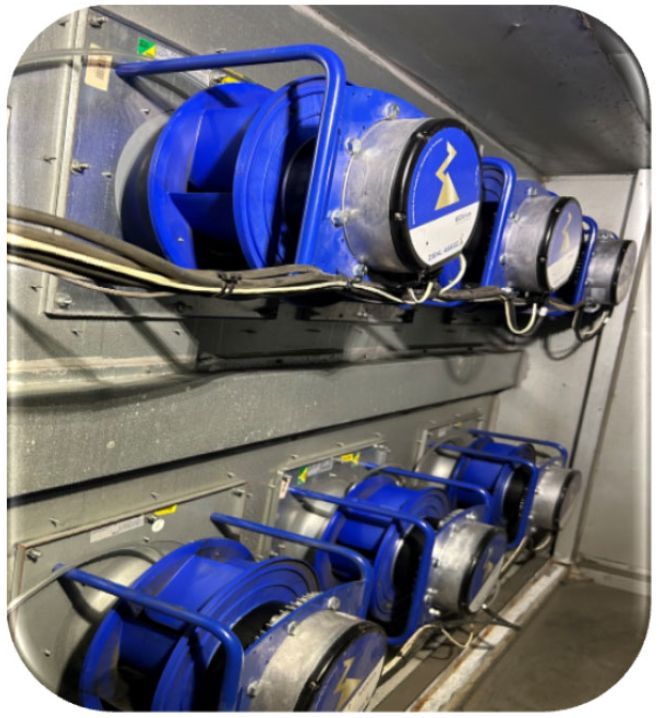

Our team recently completed the installation of high-efficiency ECM fan arrays for a major global telecommunications company, upgrading their air handling system to improve reliability, efficiency, and airflow control.

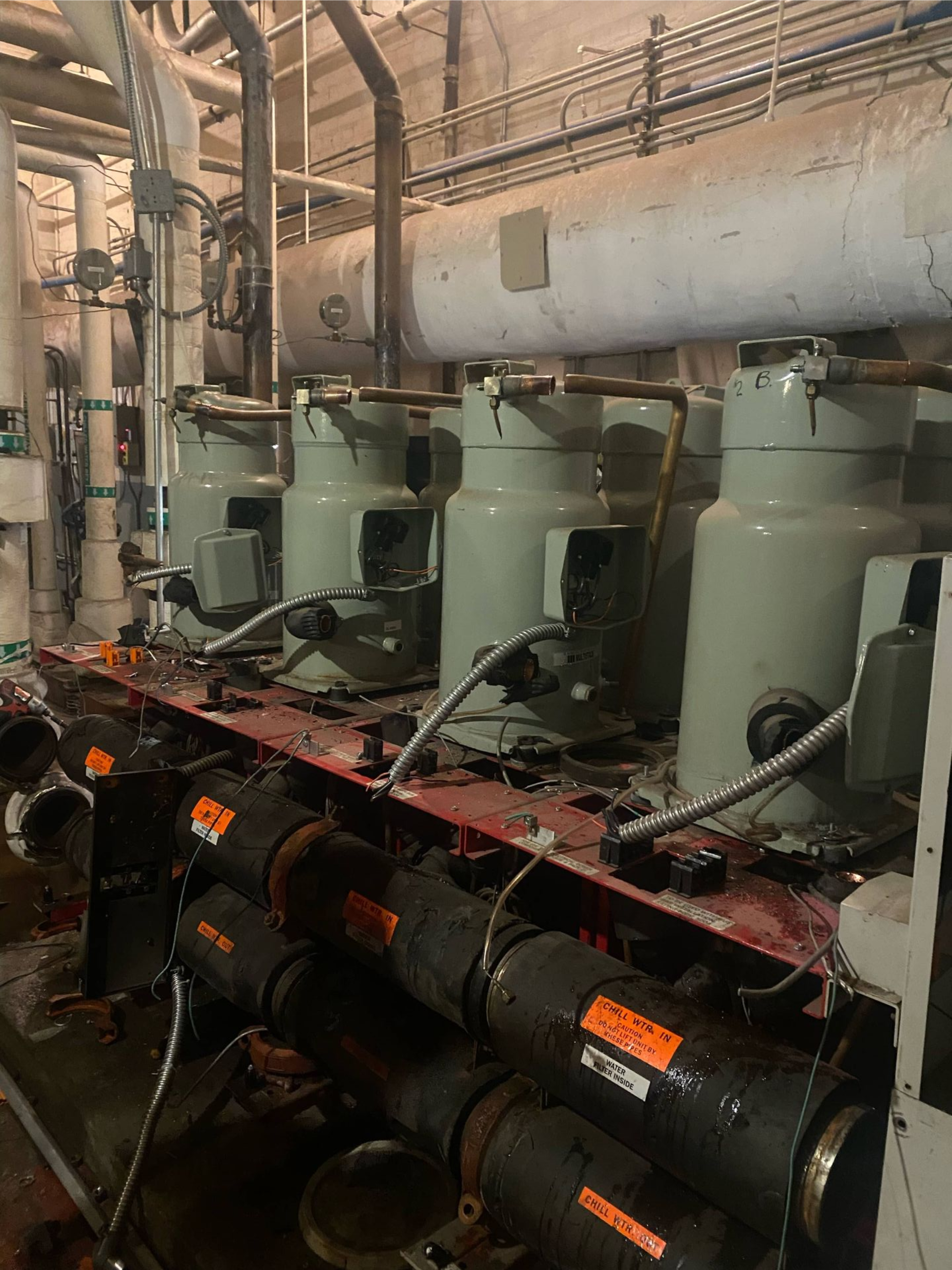

TurboChyll delivered a turnkey modular chiller replacement, upgrading four legacy Multistack units to four new 30-ton Aermec modular chillers.

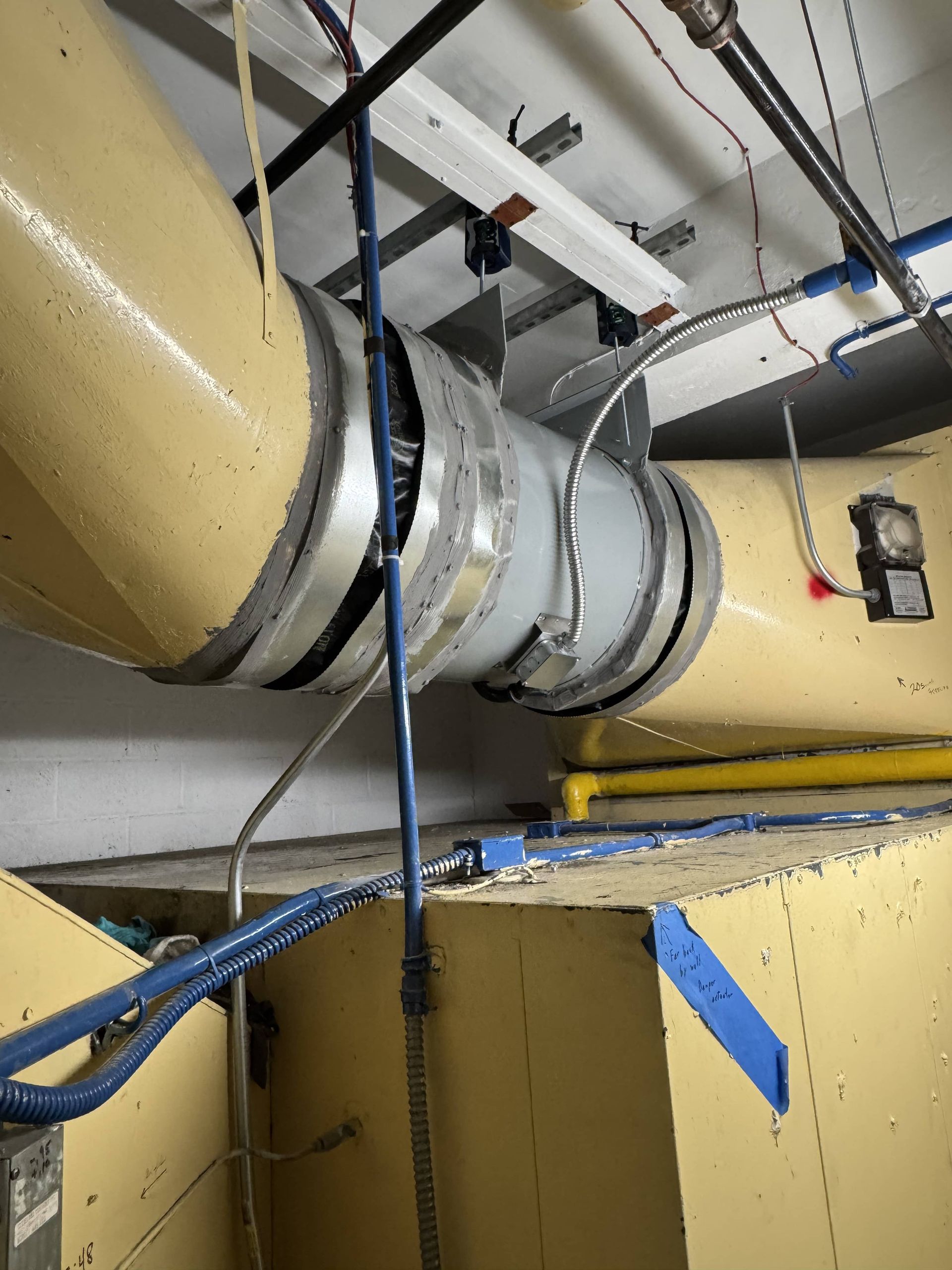

The 20th floor return air system relied on an outdated tubular inline fan assembly that no longer provided reliable airflow or efficient operation.

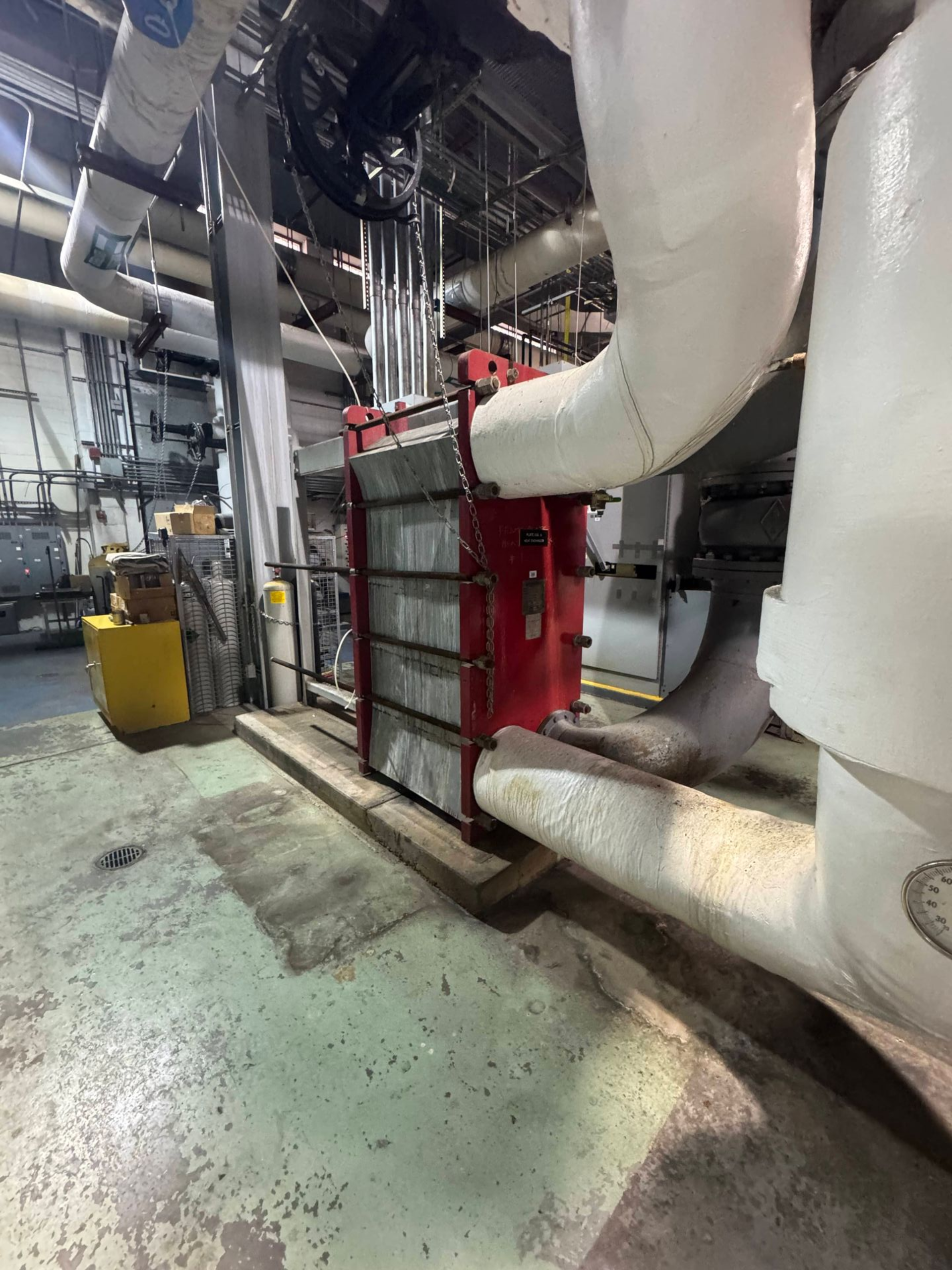

This project transformed an aging, high-risk heat exchanger into a stabilized, documented, and leak-free system, preventing failure, extending the life of a 1999 asset, and avoiding costly replacement.

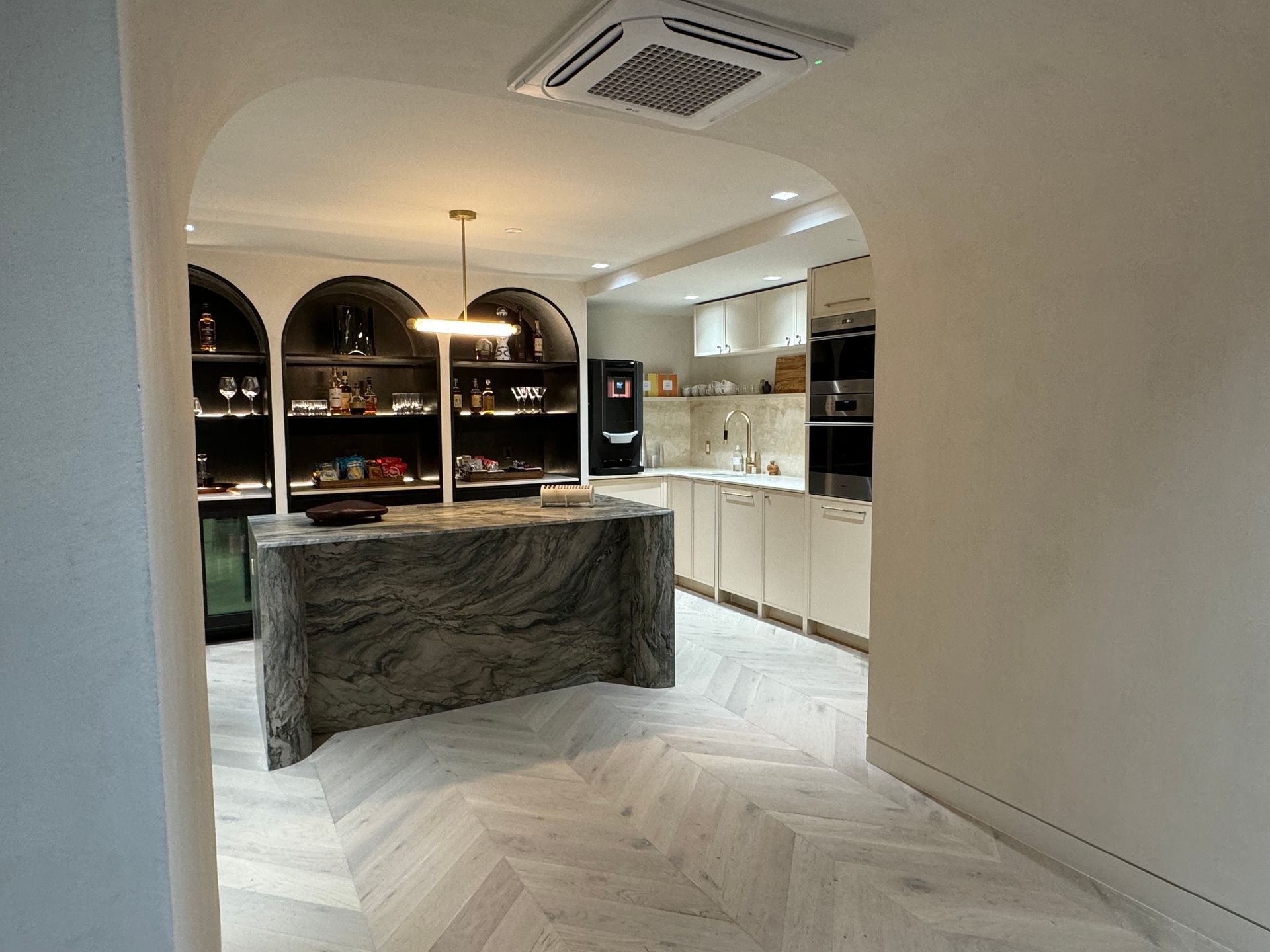

Building is renovating space to become a New Resident’s lounge area with an outdoor terrace area.
This project involved assessing, refurbishing, and upgrading components of existing air handling units to extend their operational lifespan, improve energy efficiency and maintain indoor air quality without a full replacement.

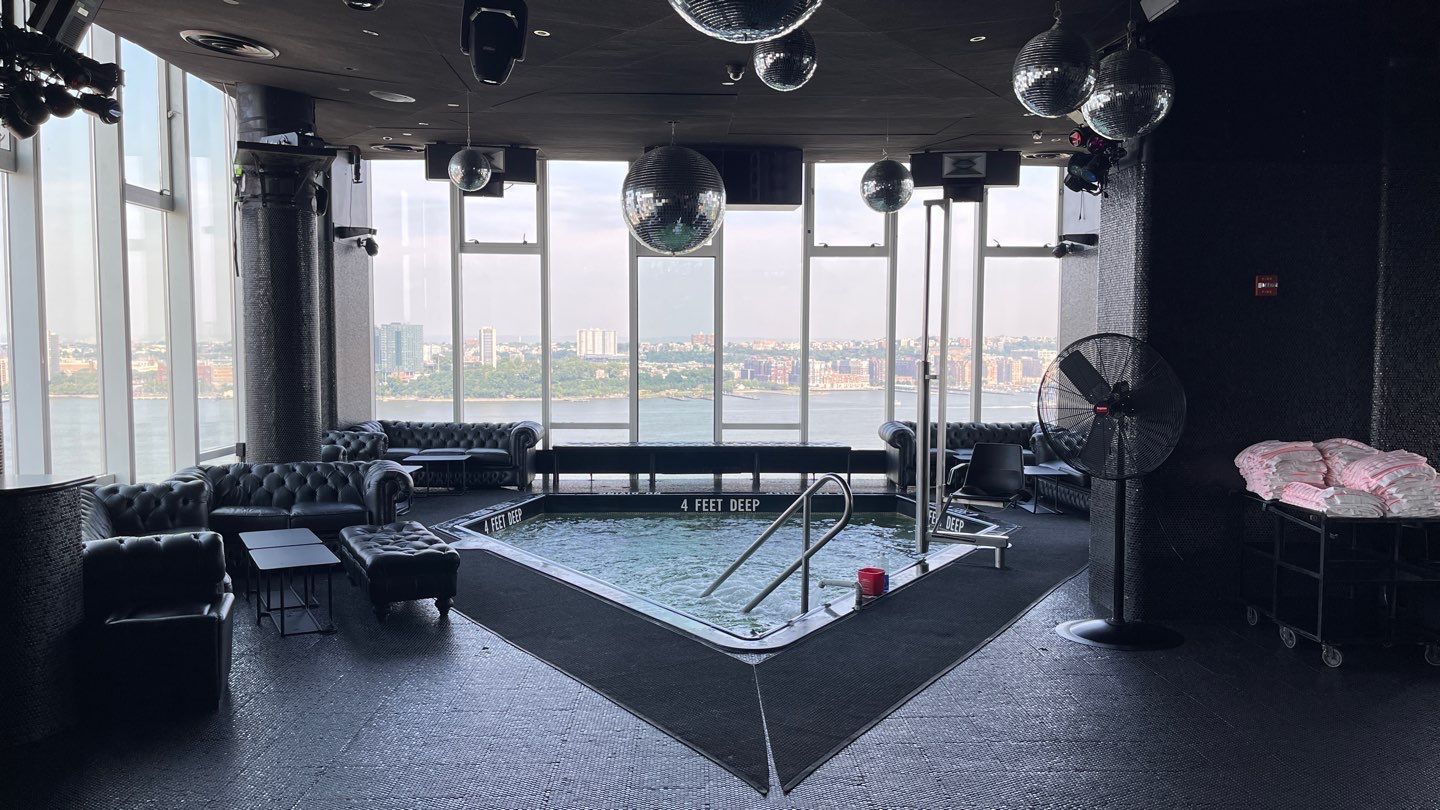

The client informed TurboChyll of the necessity for additional cooling in their upscale night club, which features an expansive hot tub. In response, TurboChyll implemented a VRF system to regulate humidity levels.

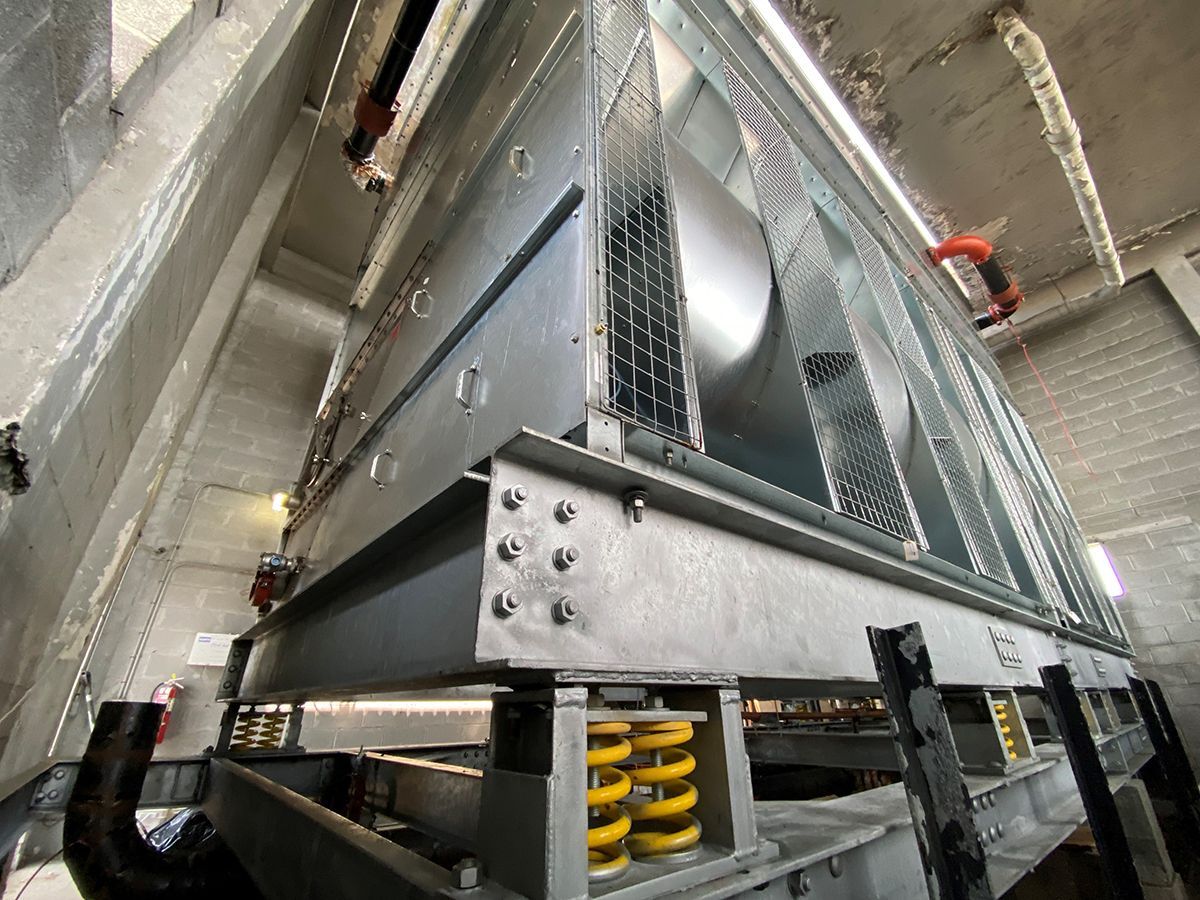

Client advised TurboChyll that the Fan Motor Shaft had final broke and it was time to replace the Cooling Tower entirely.

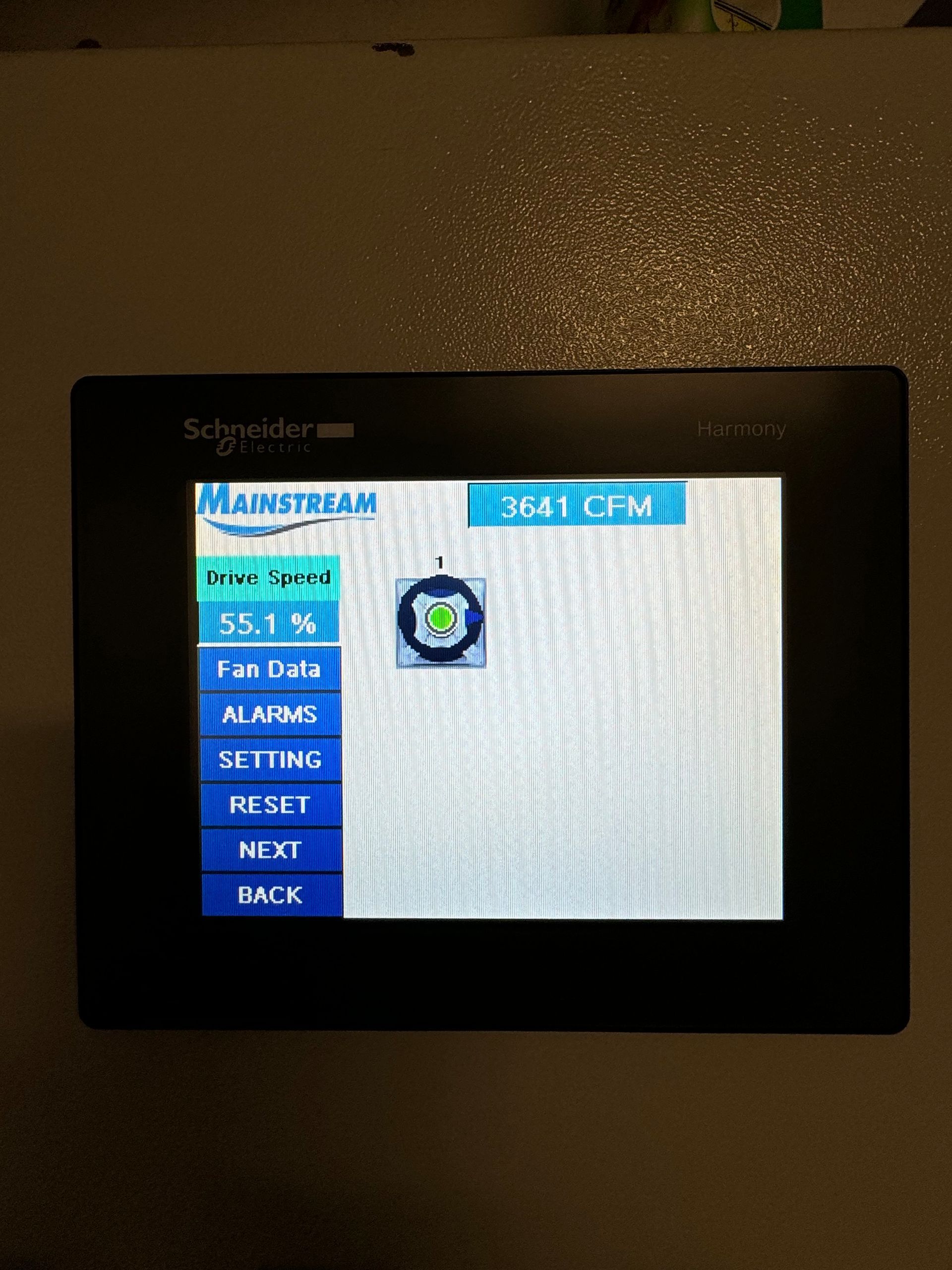

Improved operating efficiency by operating at the fan's best efficiency point and using speed control.

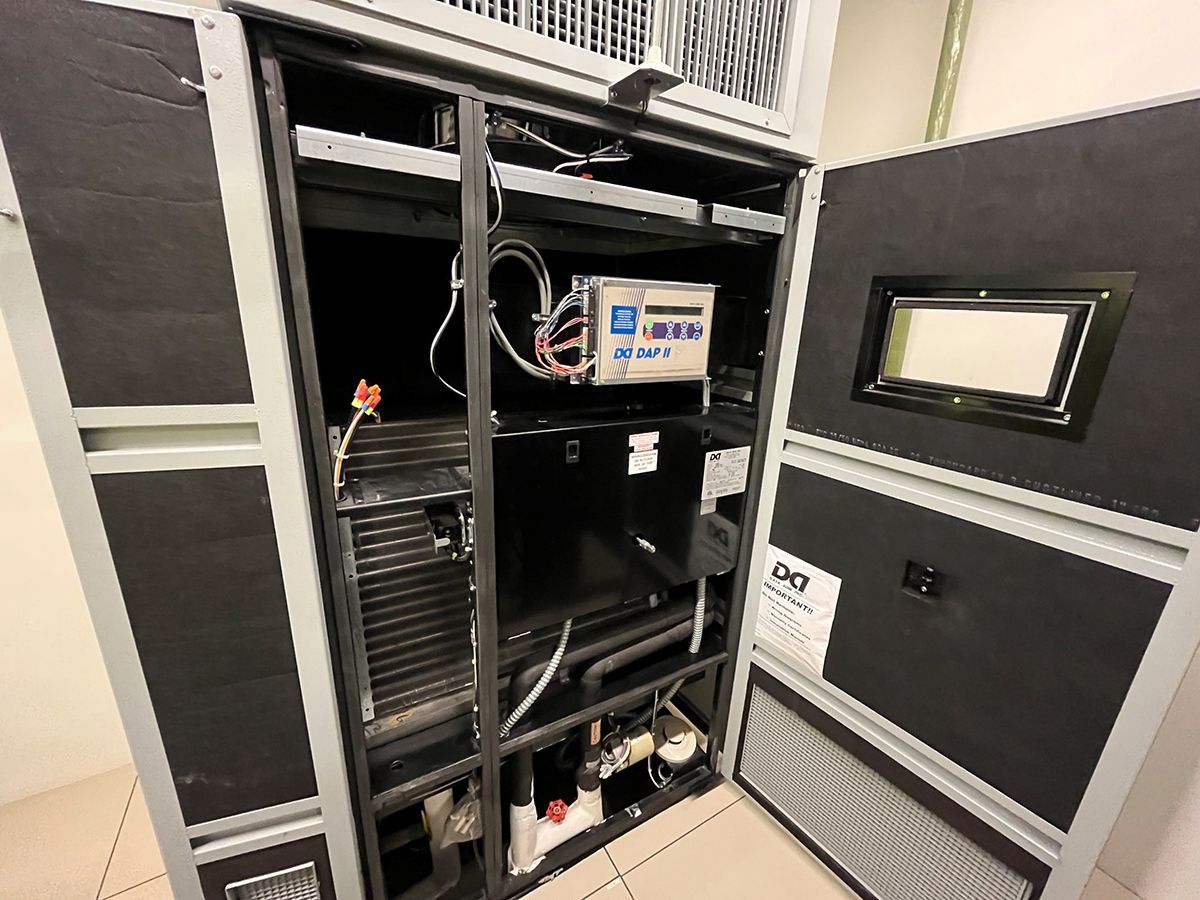

ECM Wind Wall Retrofits on 108 Data Aire Units
