Project #6 - VRF Design
Project #6 - VRF Design
Scope of Work:
Equipment to Be Furnished and Installed
- (2) 4-Ton LG Condensing Units
- (4) 2-Ton LG Ceiling Cassette Air Handlers
Condensing Unit Installation

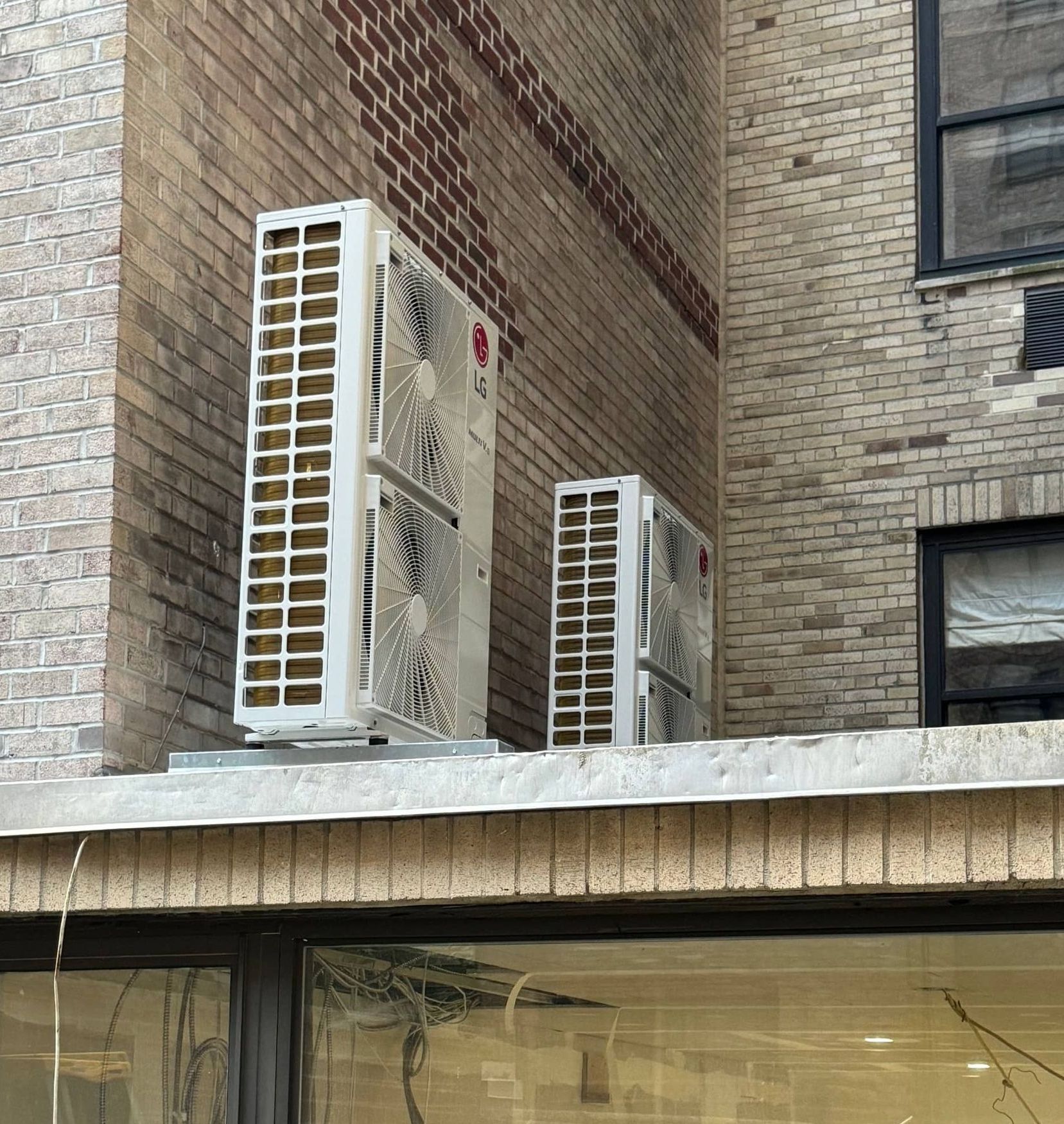

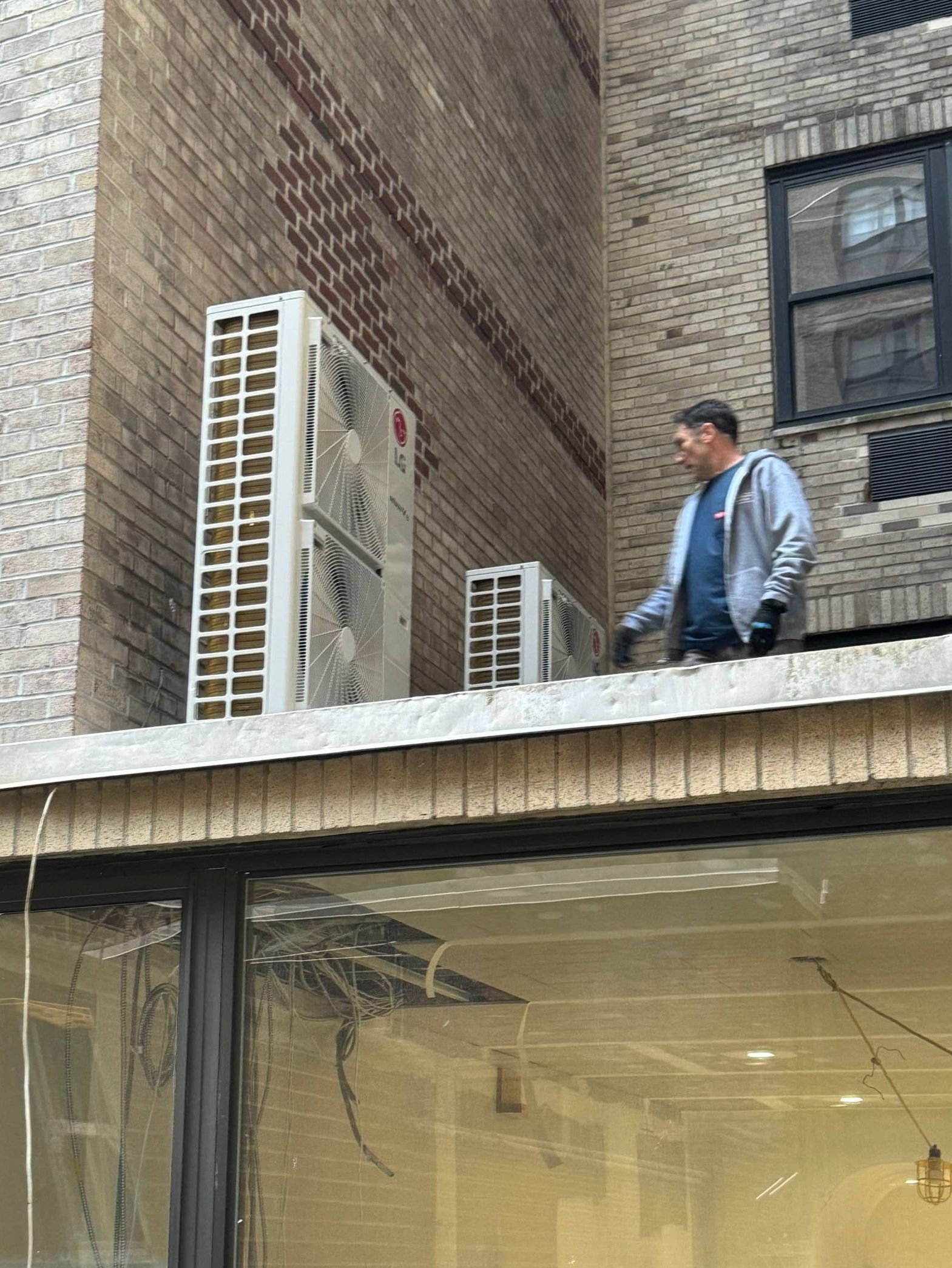

- Mount (2) 4-ton condensing units on the rooftop.
- Includes furnishing and installing roof rails for secure mounting.
Indoor Unit Installation

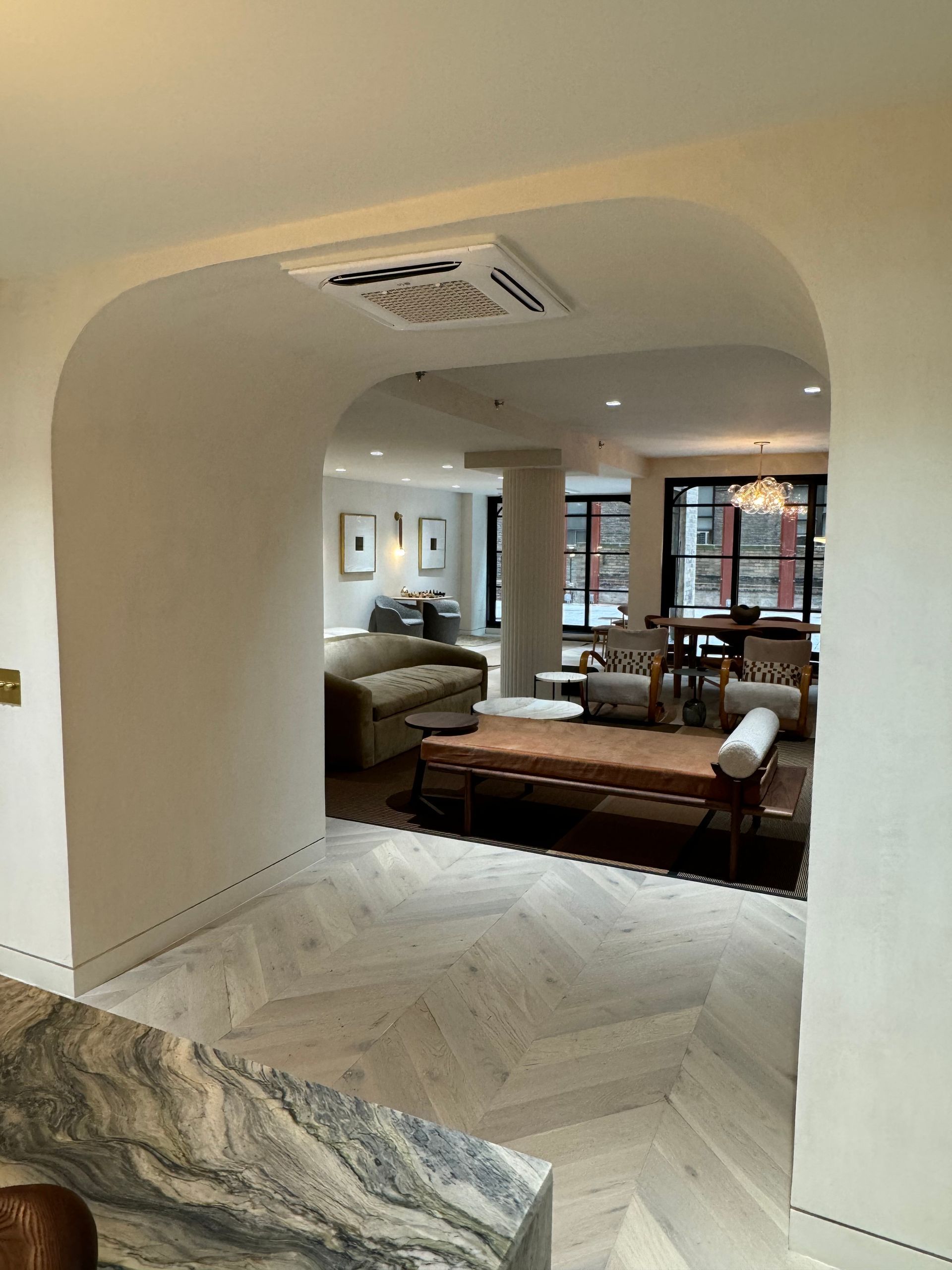

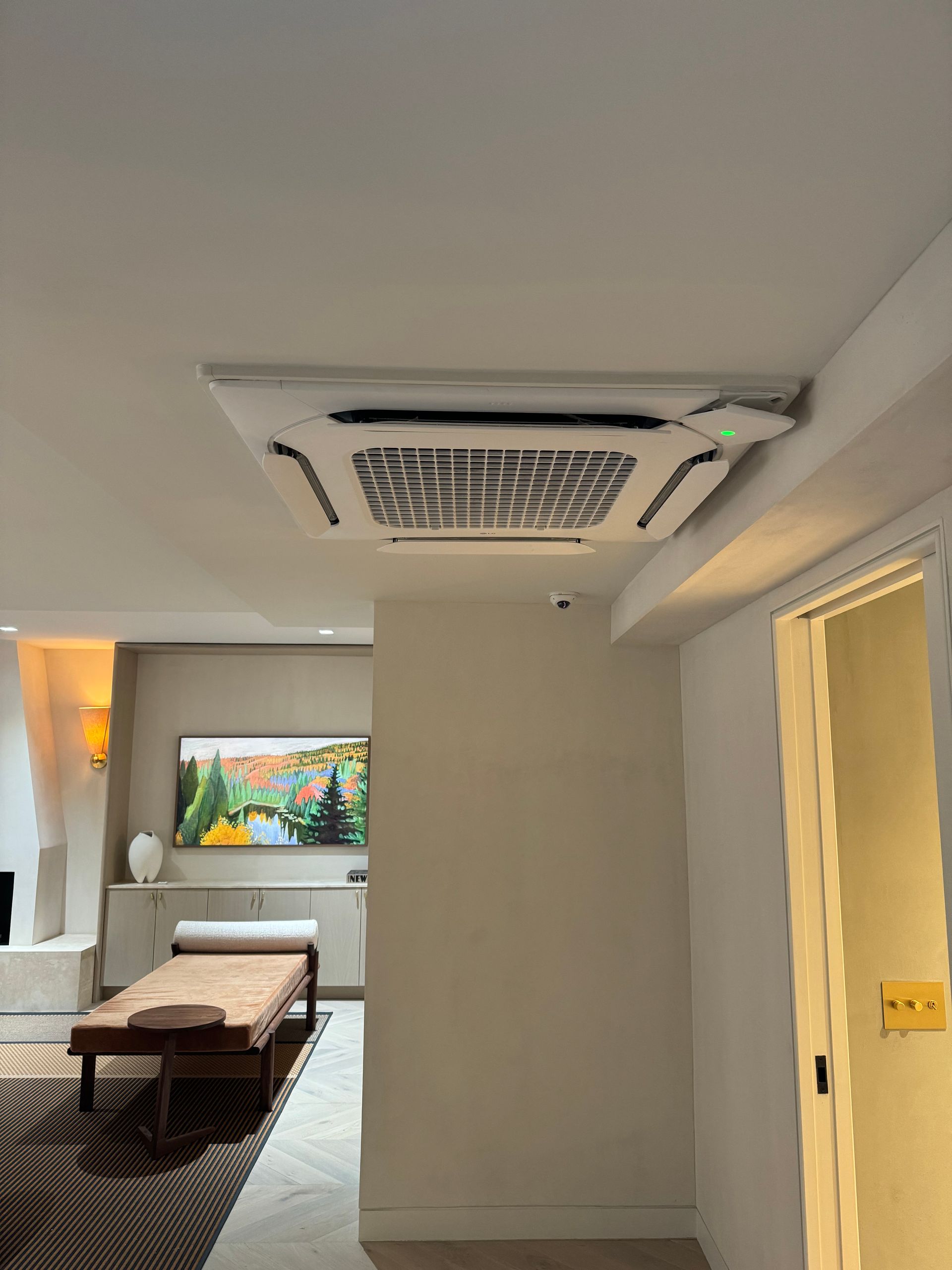

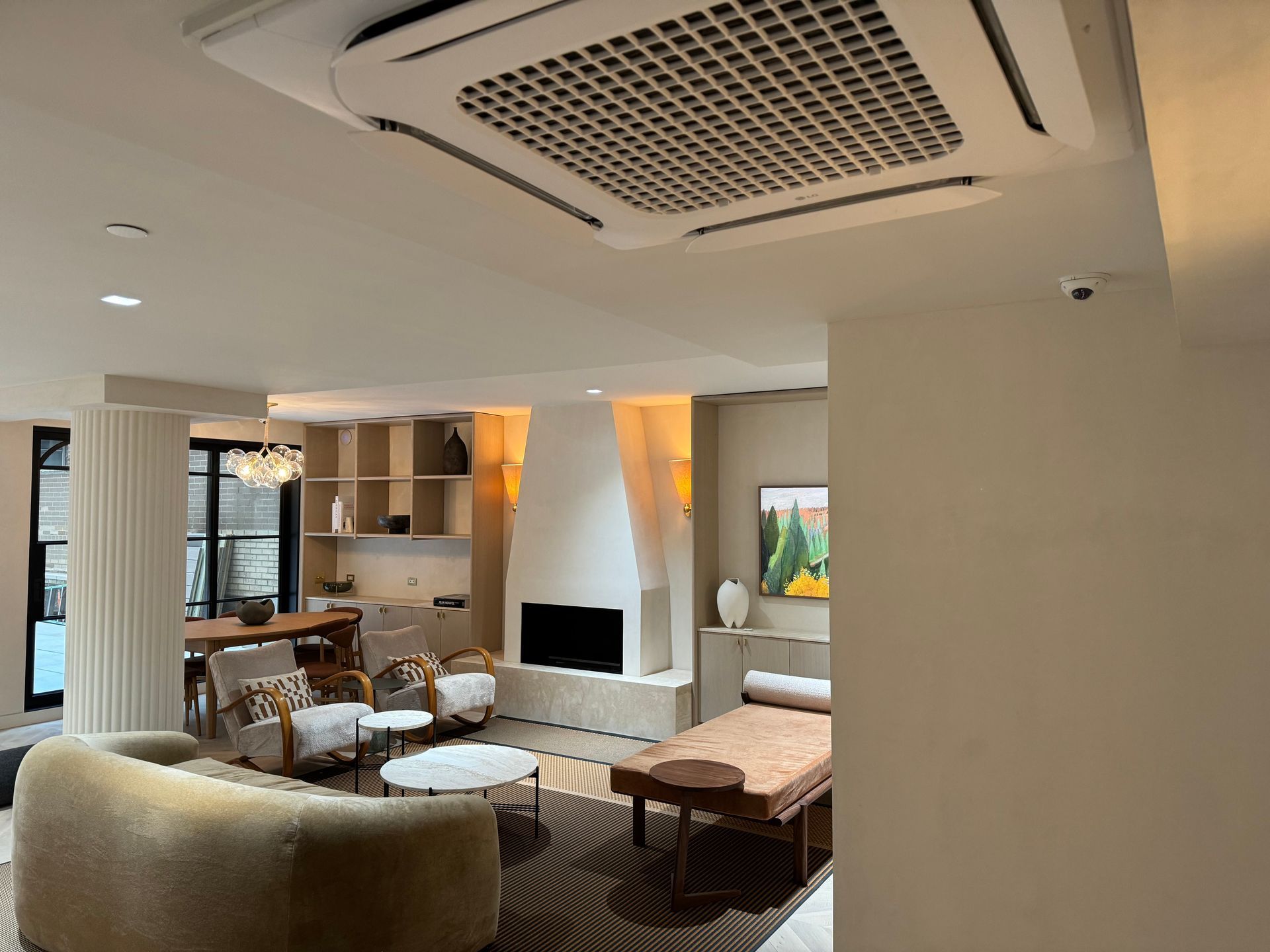

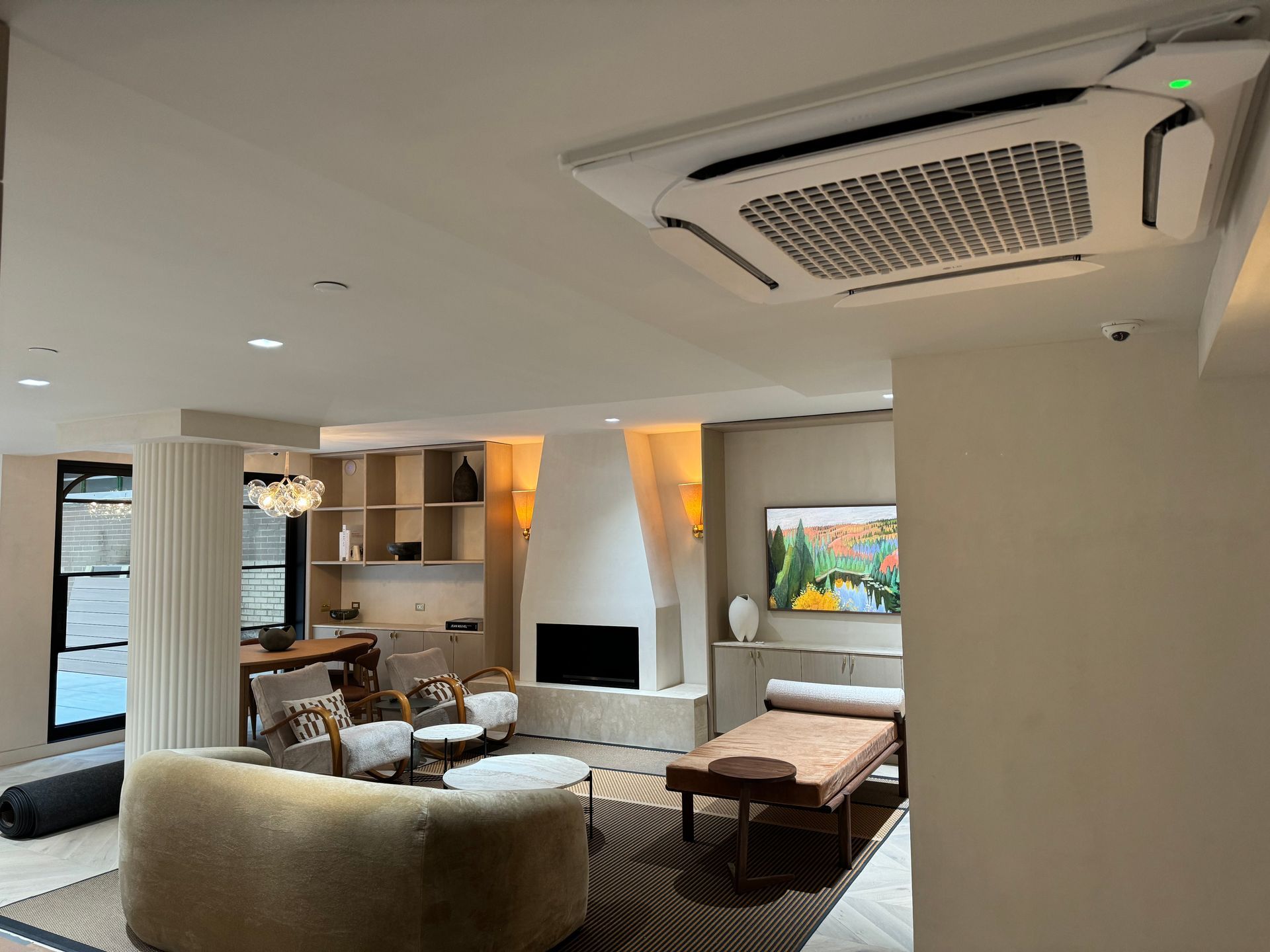

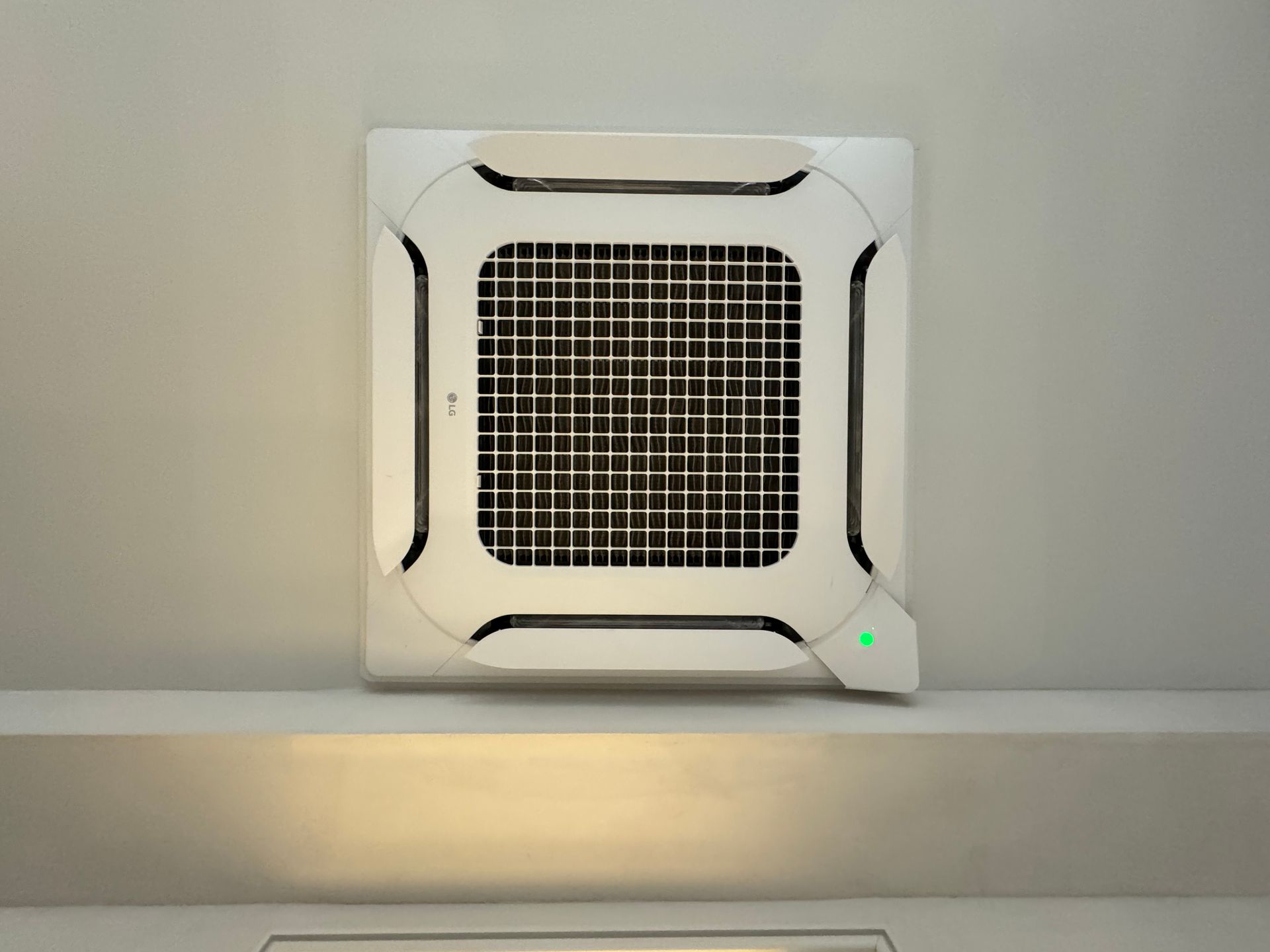

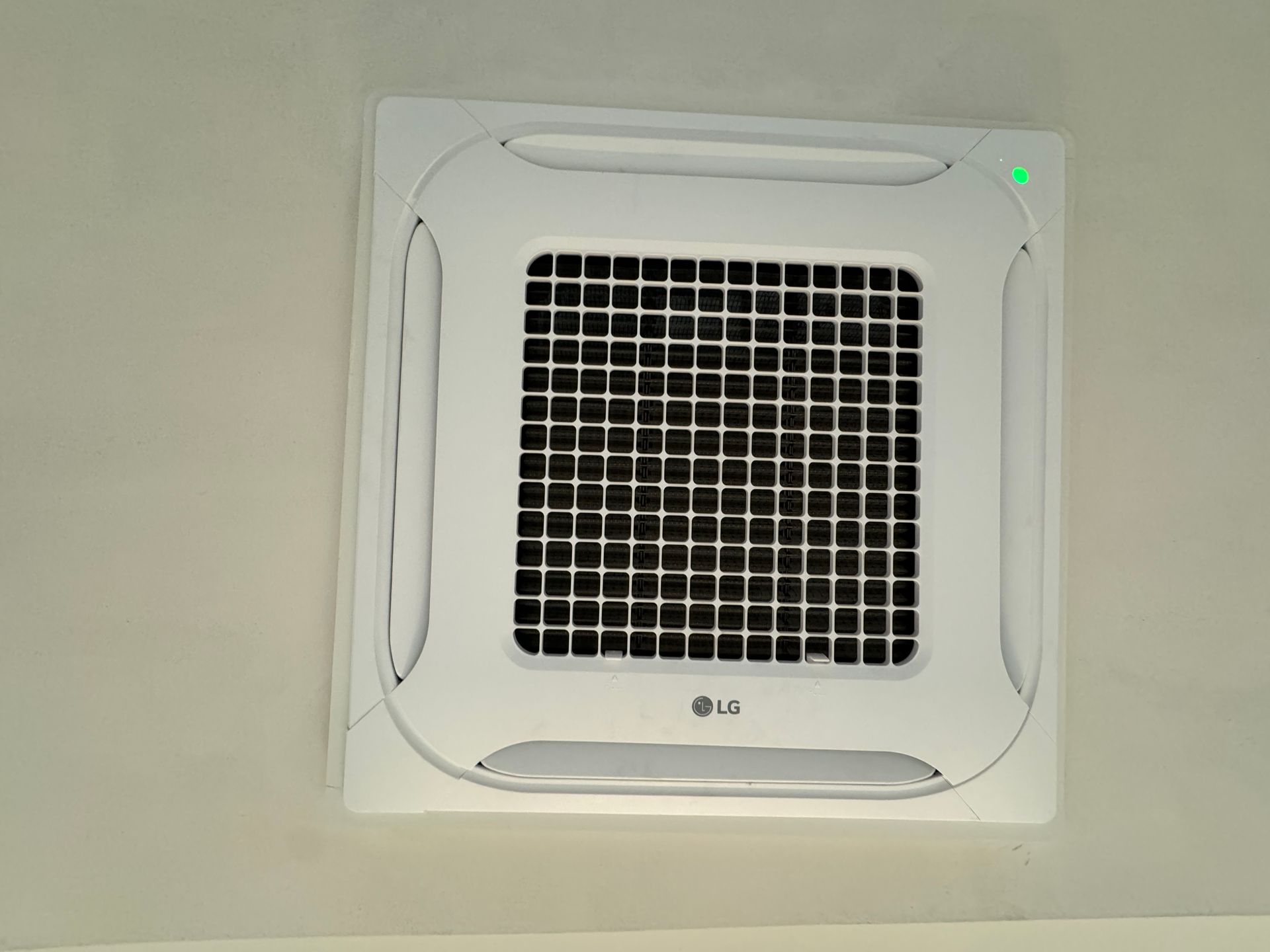

- Ceiling-mount (4) 2-ton ceiling cassette air handlers within the apartment area.
Refrigerant Piping
- Furnish and install all required refrigerant piping, fittings, and insulation as needed for a complete and operational system.
- All piping to comply with manufacturer specifications and local code requirements.

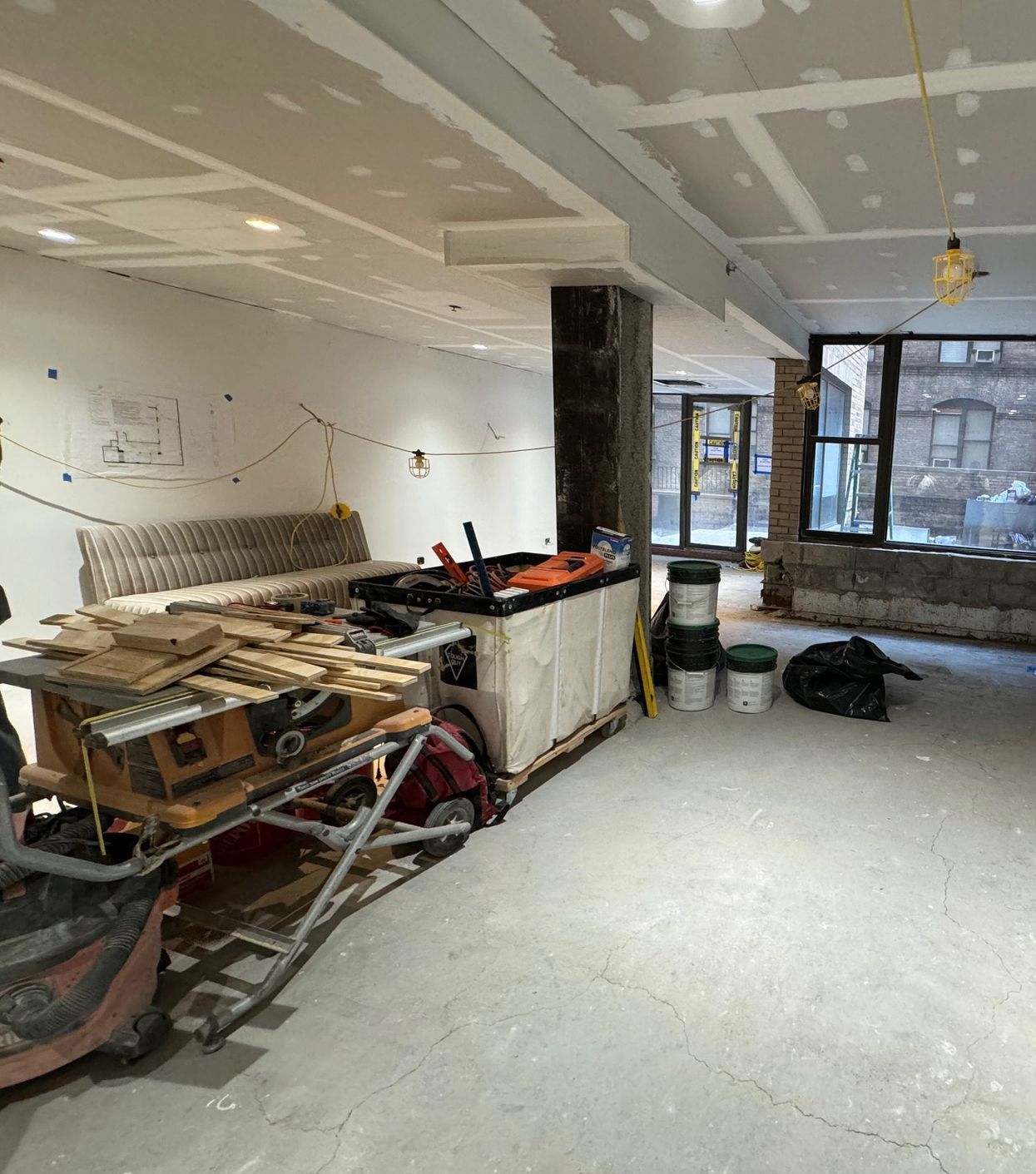

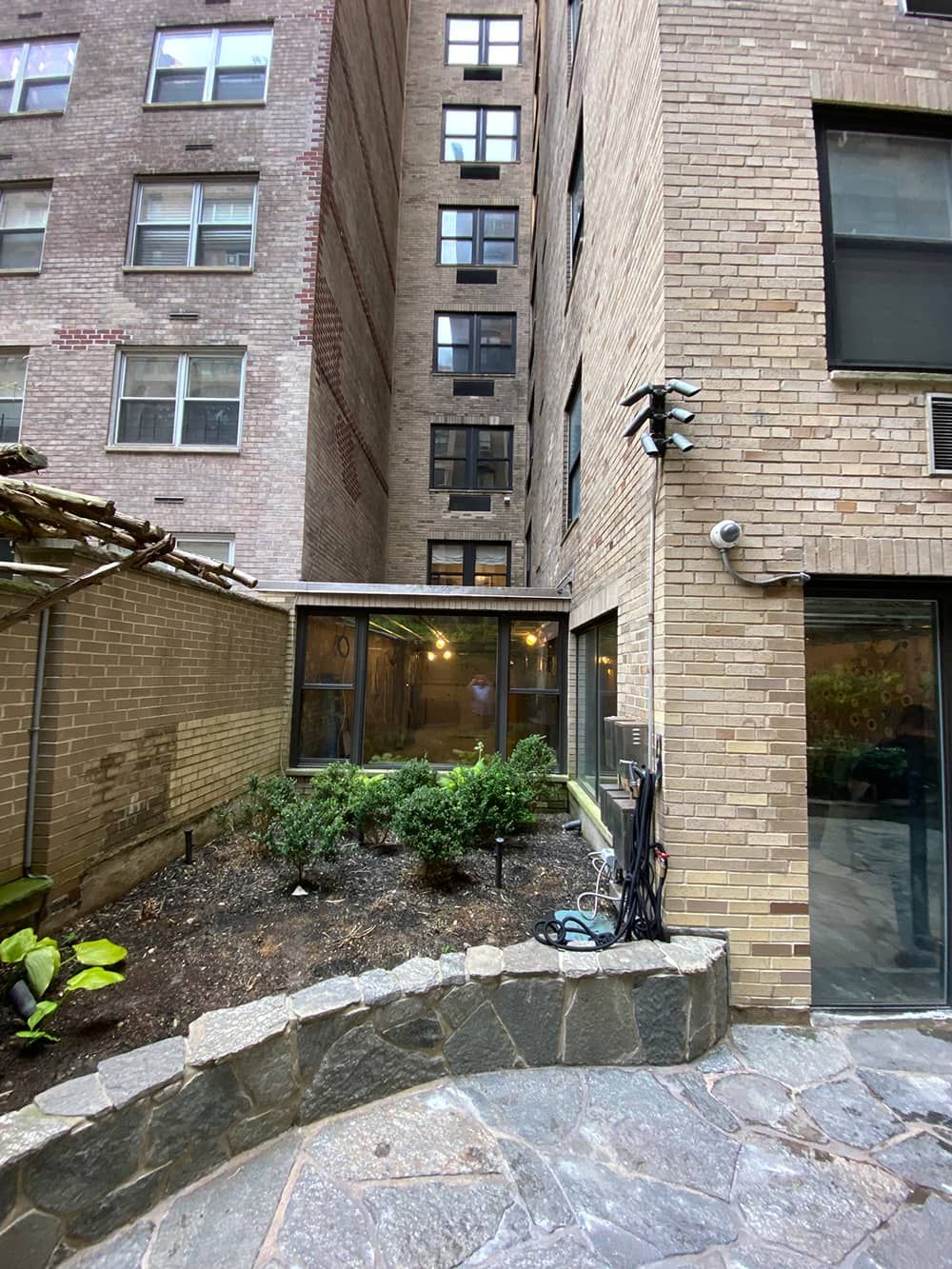

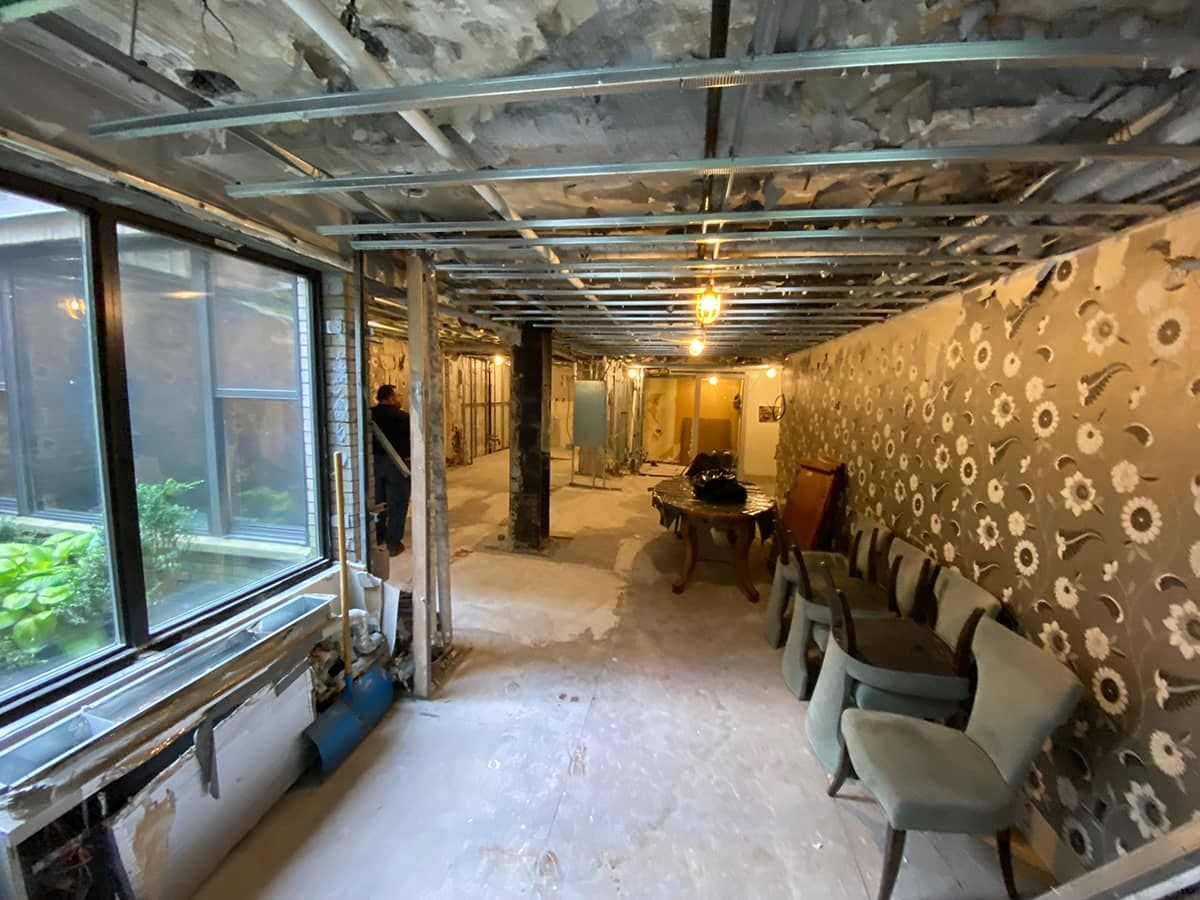

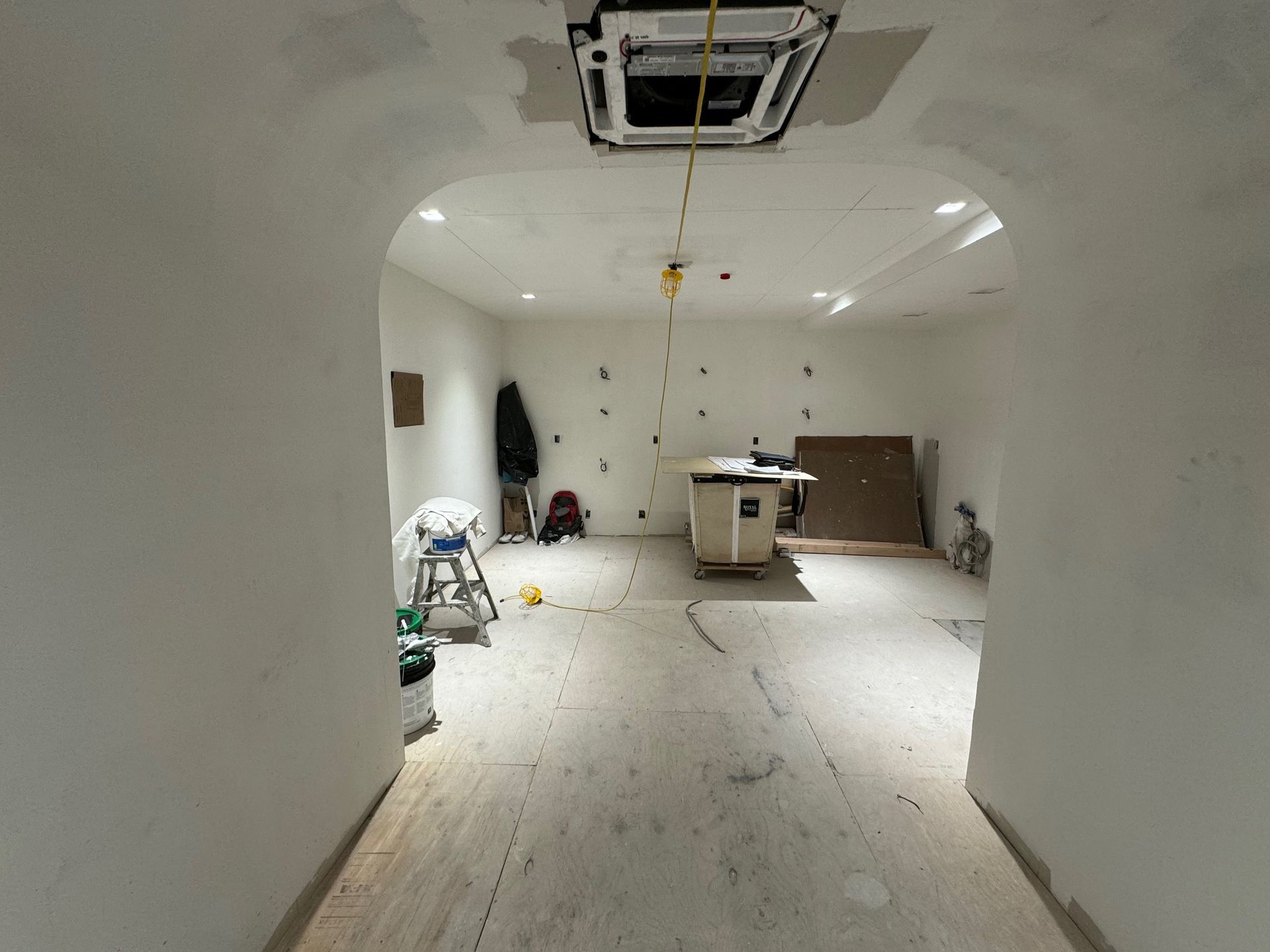

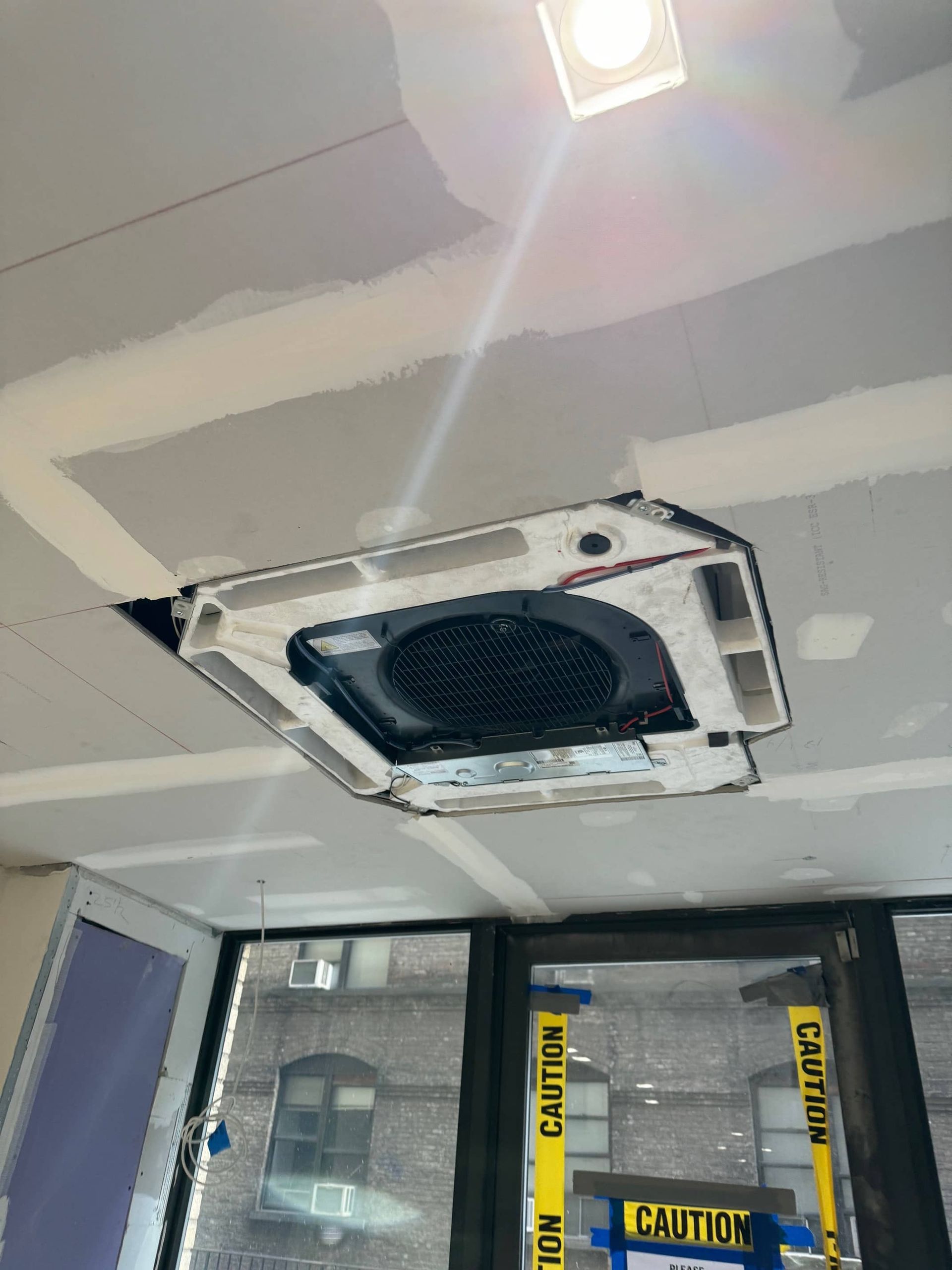

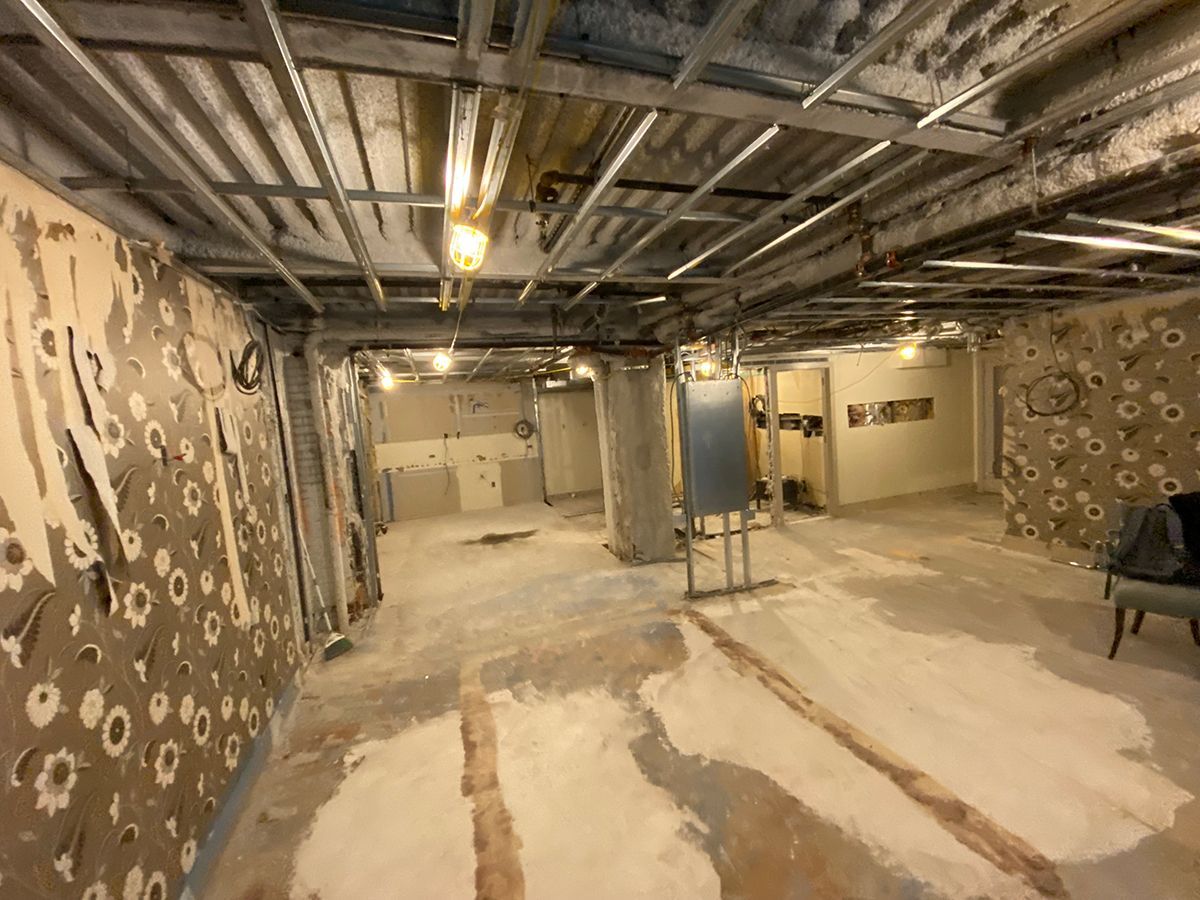

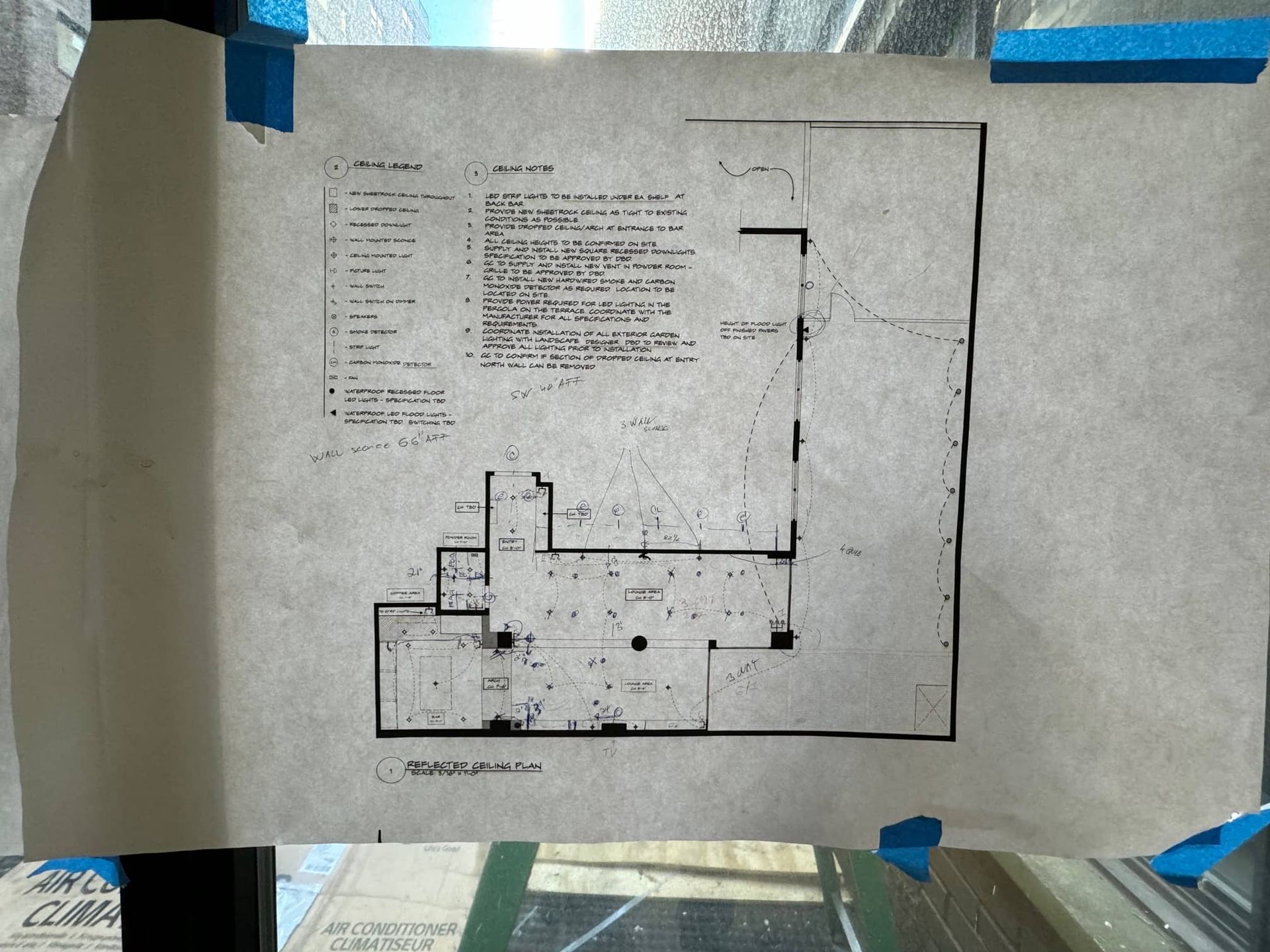

Before & On-Going Project Photos

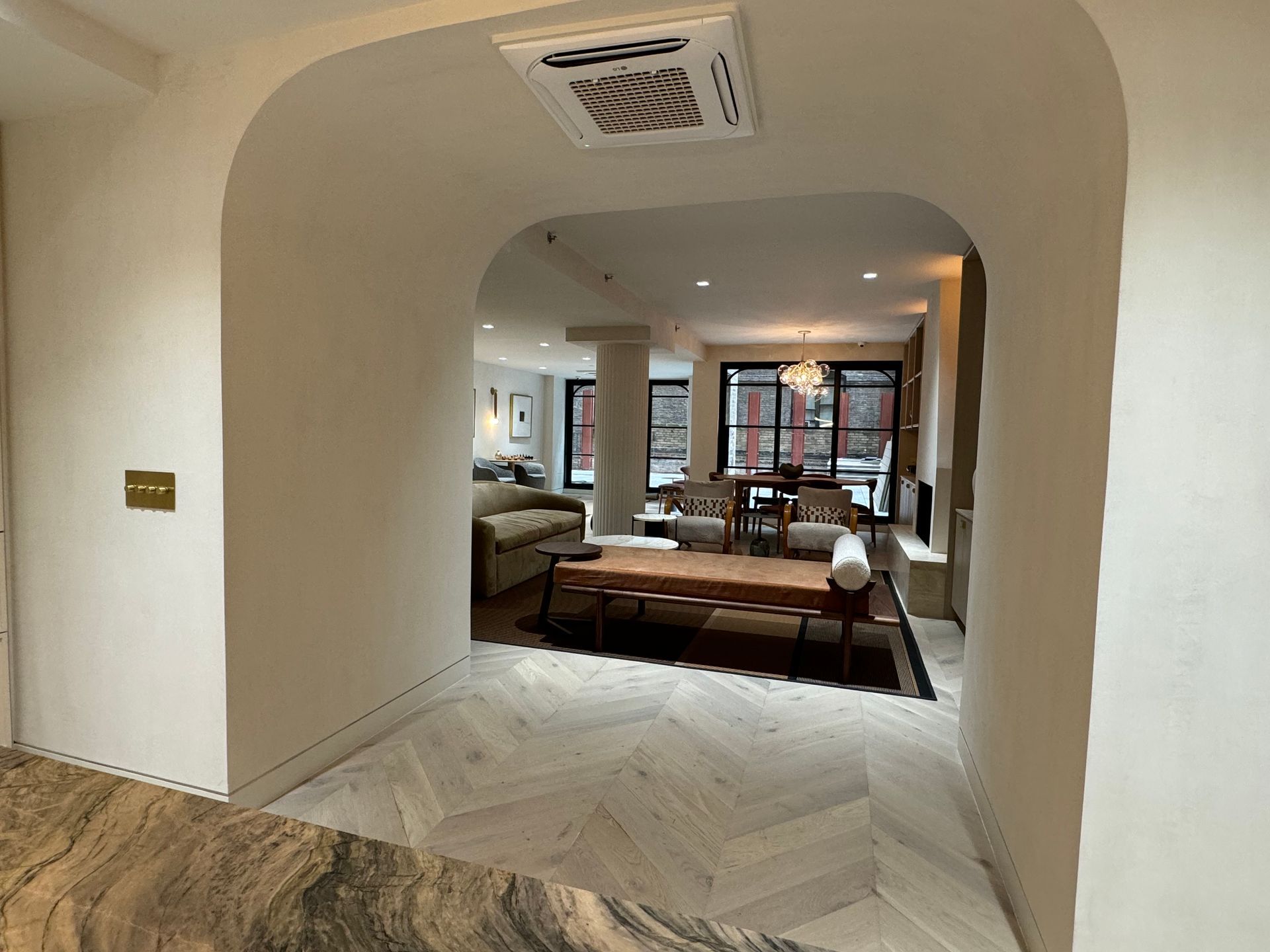

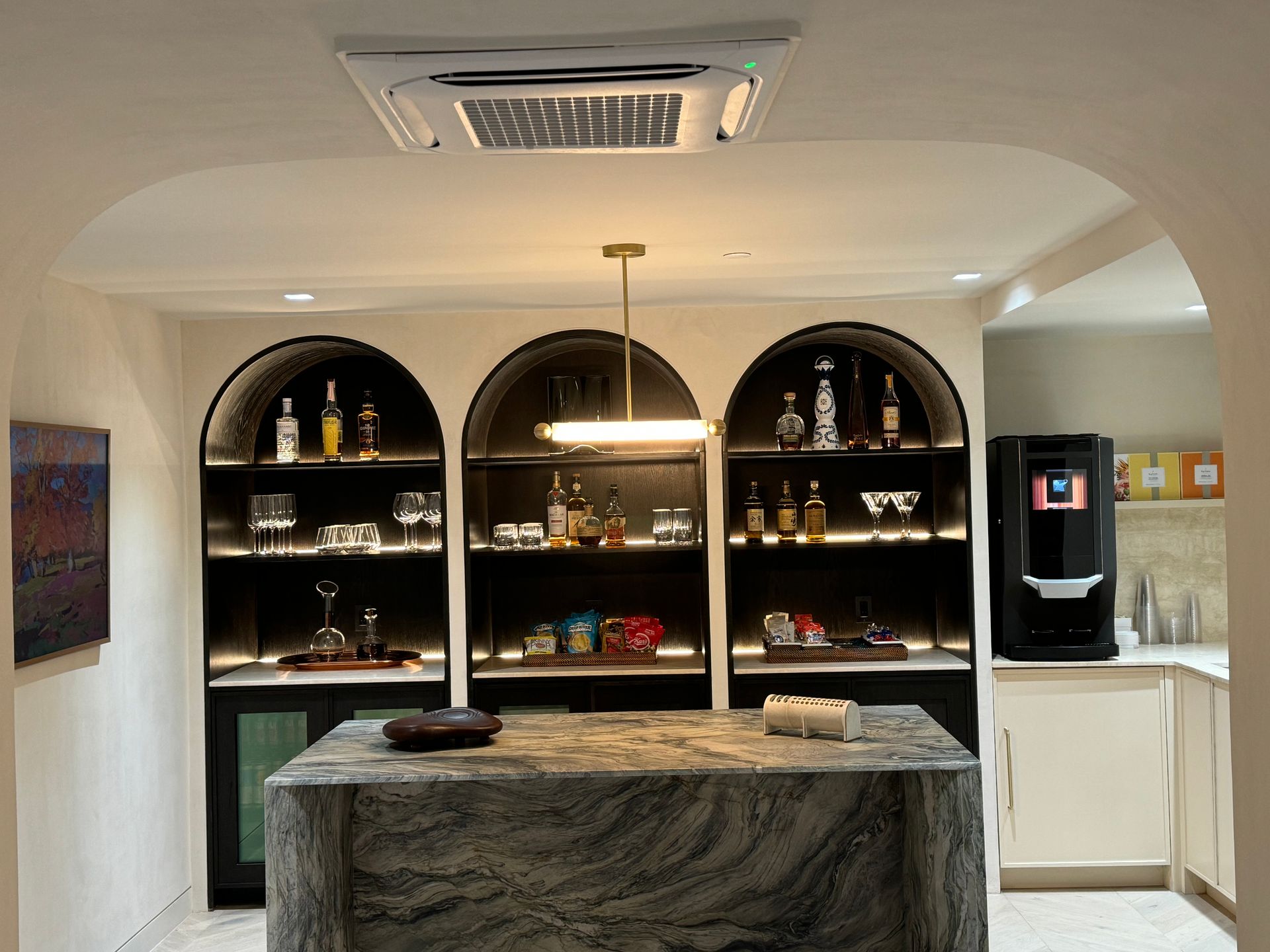

Completed Project Photos
Projected Finished Project Photos
